No.12-Torque Converter Clutch (TCC) Non-Operation
No.12-Torque Converter Clutch (TCC) Non-Operation

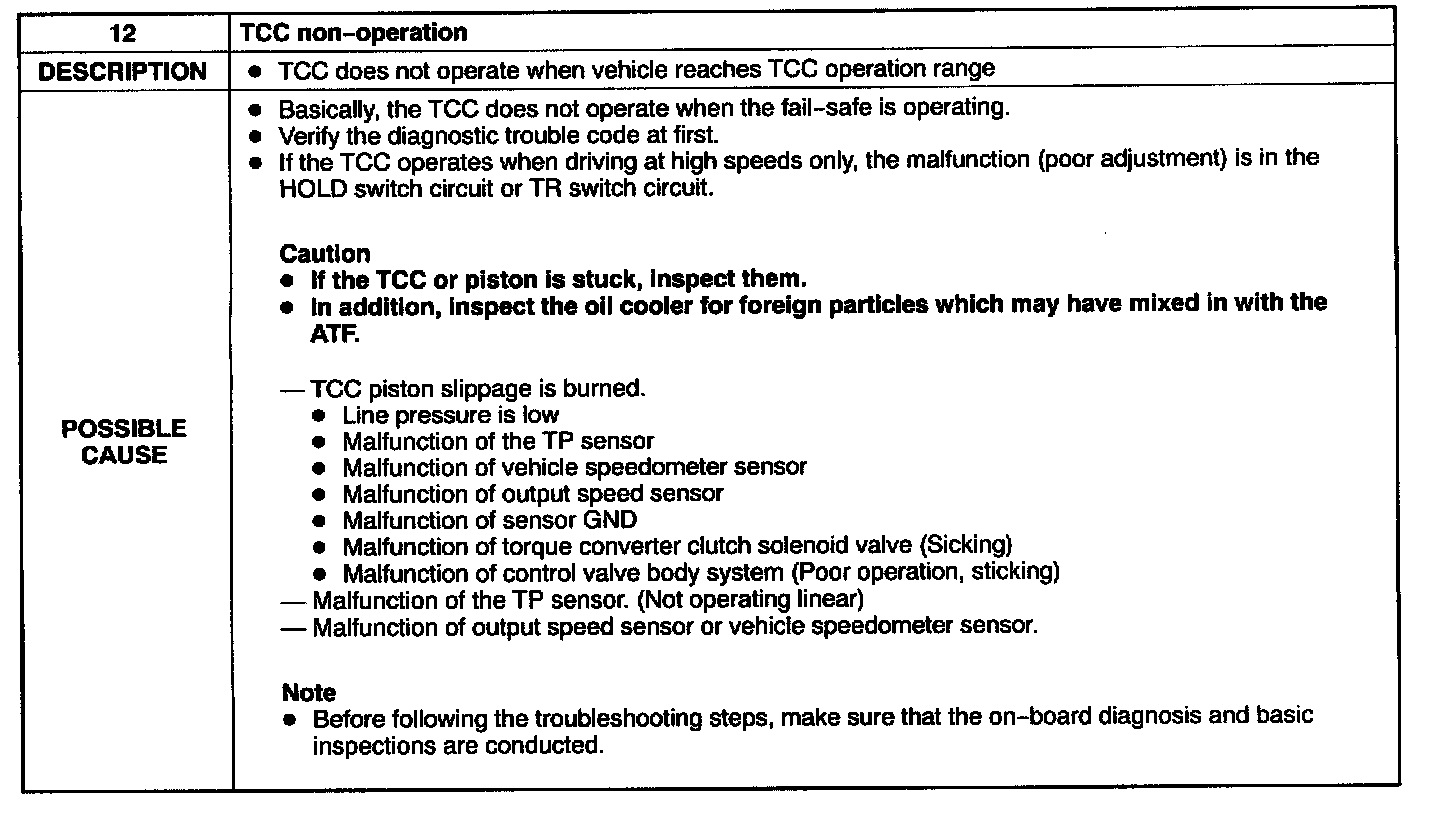

NO. 12 TCC NON-OPERATION [LJ4A-EL]
Diagnosis Procedure

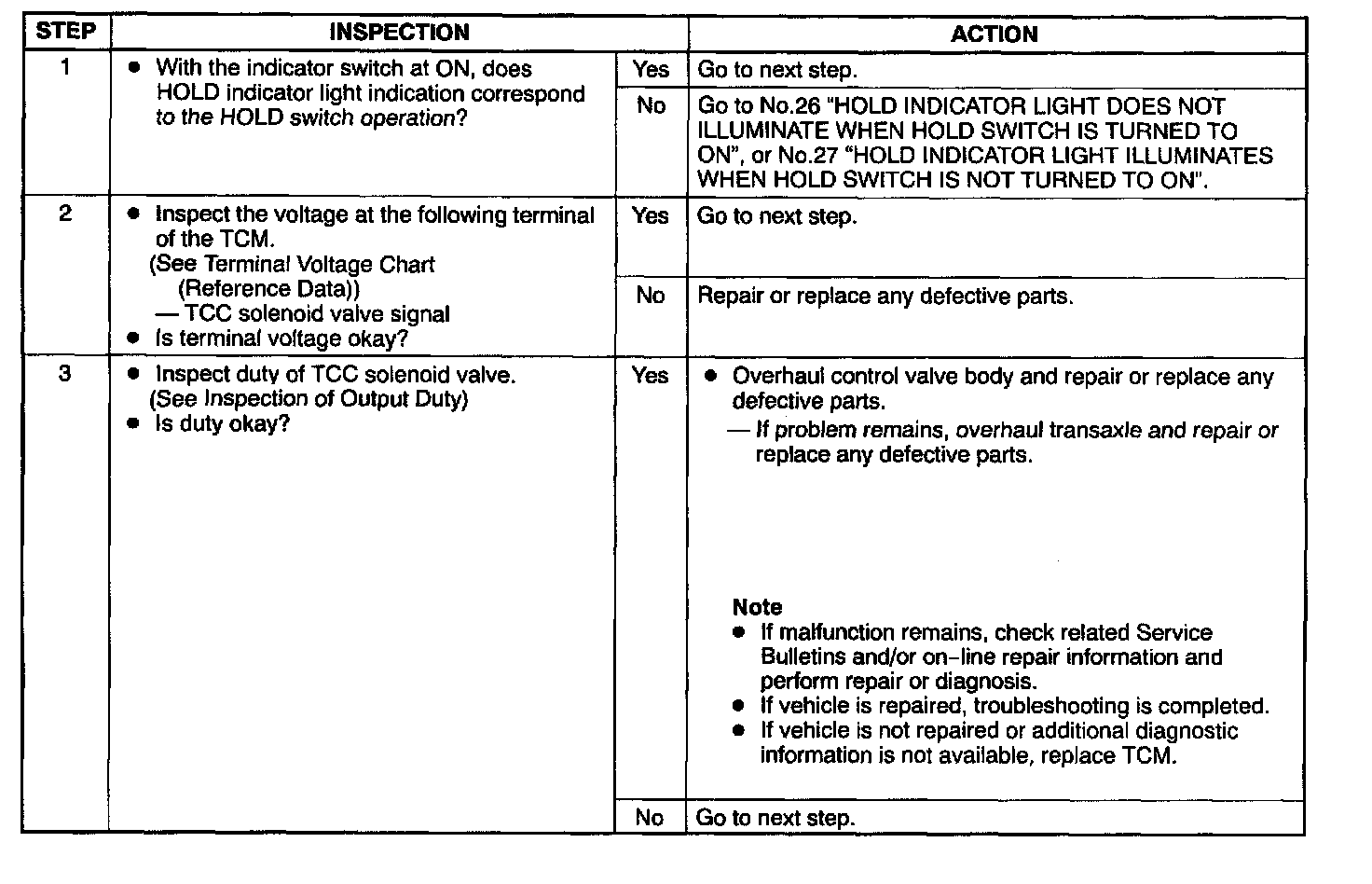

Step 1 - 3

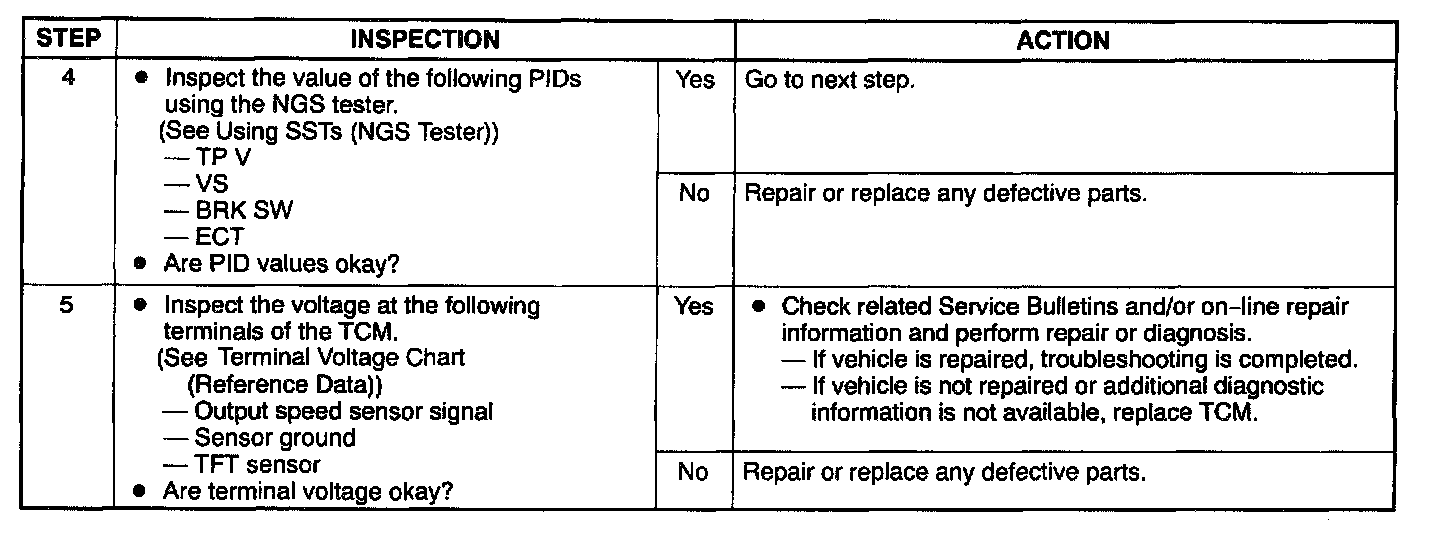

Step 4 - 5
