Automatic Transaxle Basic Inspection
Automatic Transaxle Basic Inspection
AUTOMATIC TRANSAXLE BASIC INSPECTION [LF4A-EL]

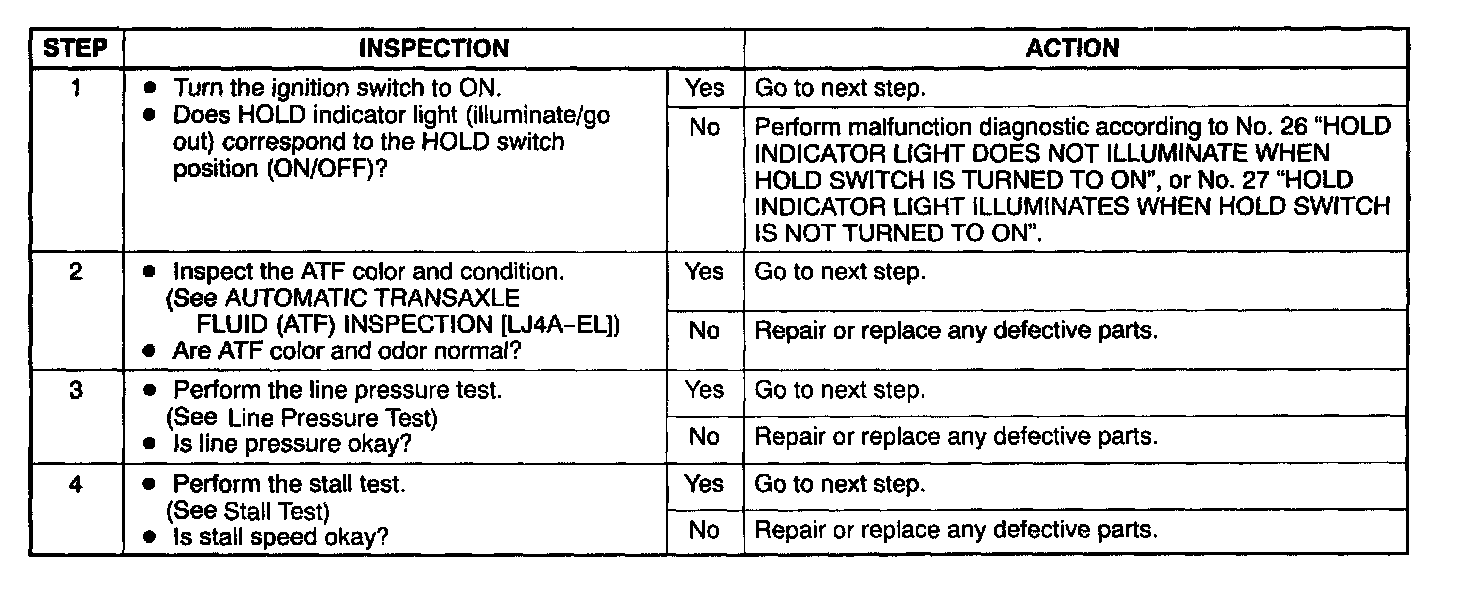

Part 1 of 2

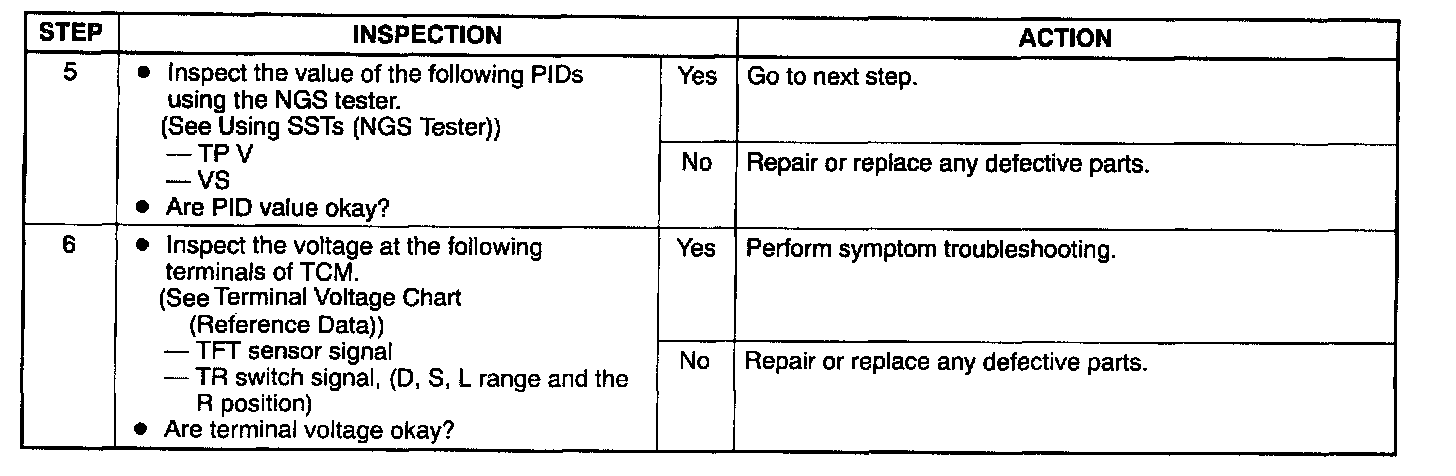

Part 2 of 2
