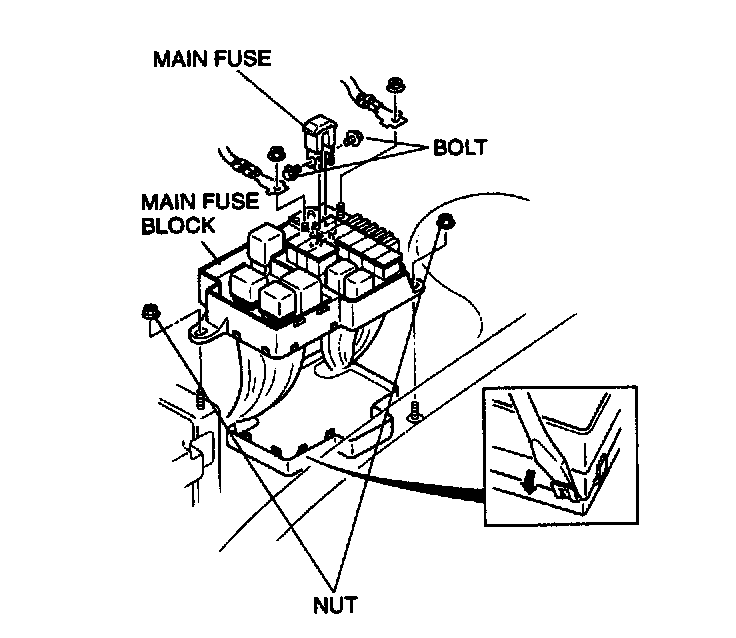

Main Fuse

1. Disconnect the negative battery cable.
2. Remove the main fuse block cover.
3. Remove the main fuse block mounting nuts.
4. Remove the MAIN fuse mounting bolts.




5. Remove the MAIN fuse.
6. Install in the reverse order of removal.
