Hazard Warning Switch
>>
Testing and Inspection
Hazard Warning Switch: Testing and Inspection
1.
Remove the meter hood.
2.

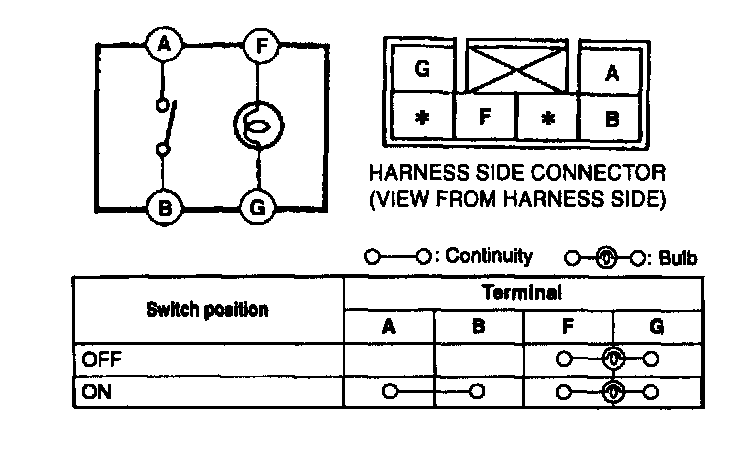

Inspect for continuity between the
hazard warning switch
terminals using an ohmmeter.
-
If not as specified, replace the
hazard warning switch
.
