Glove Box Lamp Switch: Testing and Inspection

1. Disconnect the negative battery cable.
2. Remove the glove compartment light switch.

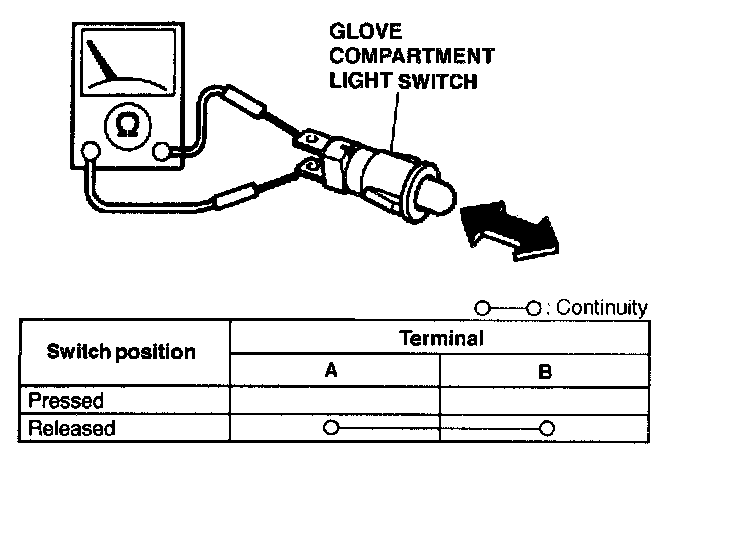

3. Inspect for continuity between the glove compartment light switch terminals using an ohmmeter.
- If not as specified, replace the glove compartment light switch.
