Glove Box Lamp Switch: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the glove compartment cover.

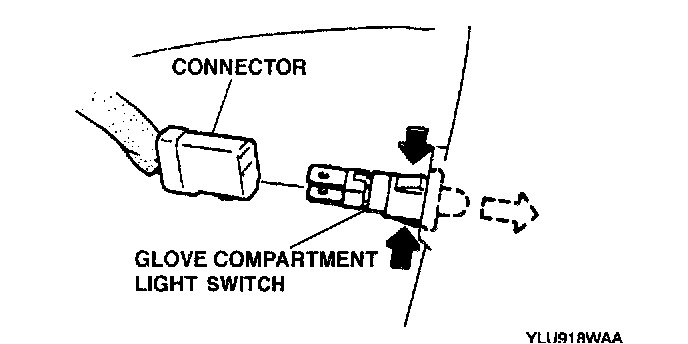

3. Disconnect the connector.




4. Remove the glove compartment light switch.
5. Install in the reverse order of removal.
