Fuel Gauge Sender: Testing and Inspection

FUEL GAUGE SENDER UNIT INSPECTION







1. Remove the fuel gauge sender unit.

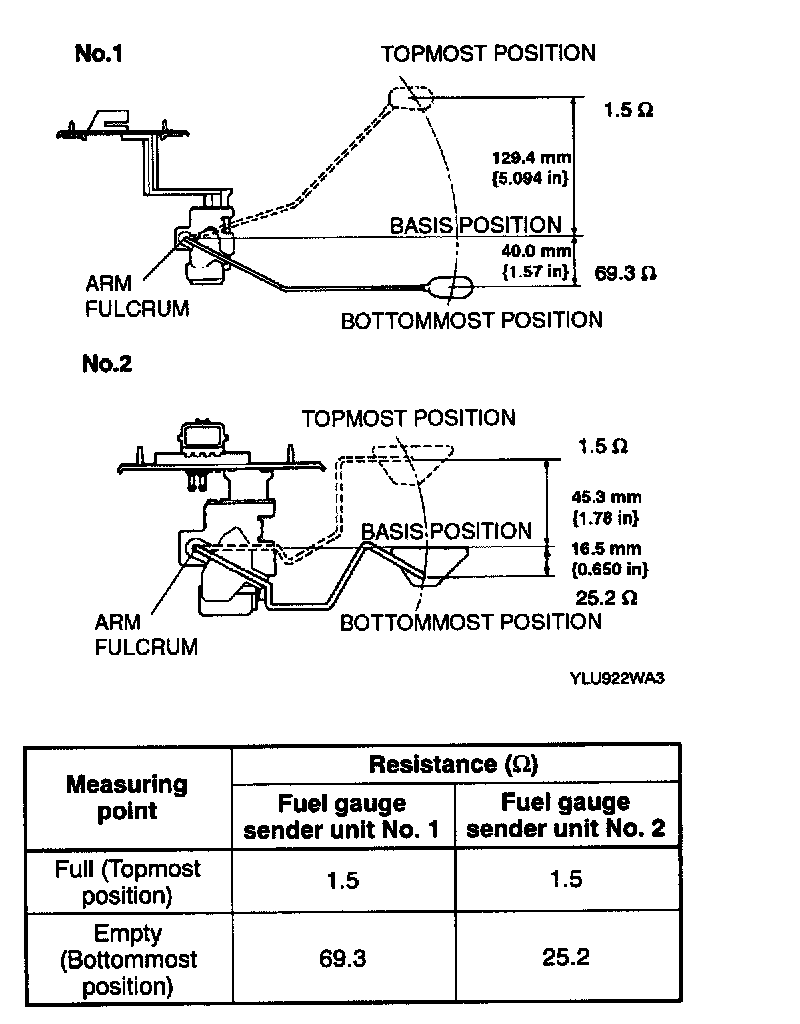

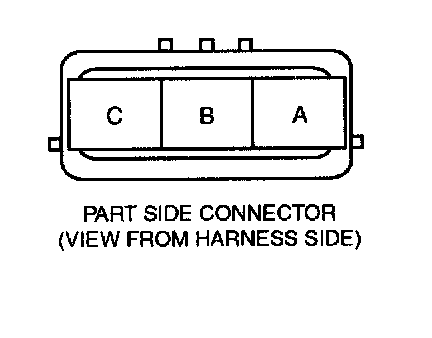

2. Move the float to the topmost and bottommost positions, and verify that the resistance between terminal B and C the unit and the positions of the float are as indicated in the figure.
- If not as specified replace the fuel gauge sender unit.
