Cabin Temperature Sensor / Switch: Service and Repair

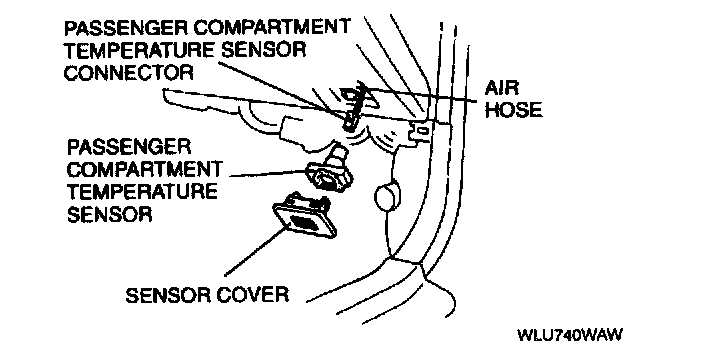

1. Disconnect the negative battery cable.
2. Remove the sensor cover.
3. Disconnect the air hose and passenger compartment temperature sensor connector.




4. Remove the passenger compartment temperature sensor.
5. Install in the reverse order of removal.
