Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

1. Disconnect the ambient temperature sensor connector.
2. Measure the temperature around the ambient temperature sensor.

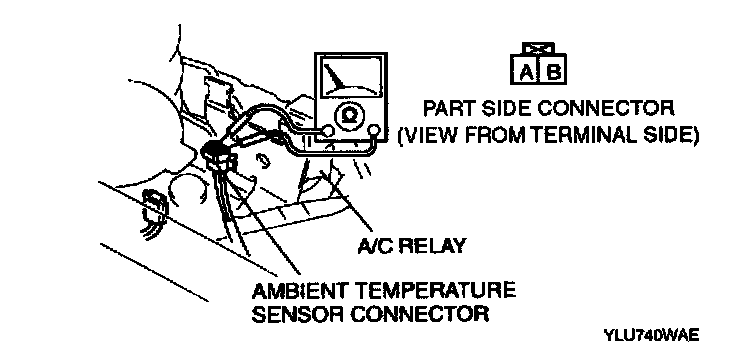

3. Measure the resistance between terminals A and B of the ambient temperature sensor connector (female).

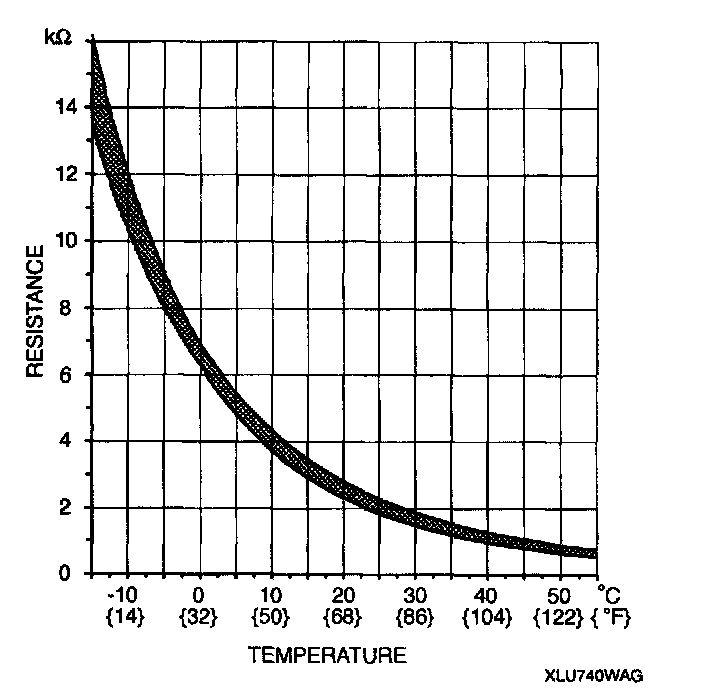

- If the resistance is not in the shaded zone indicated in the graph, replace the ambient temperature sensor.
