Temperature Sensor (Gauge): Service and Repair

REMOVAL
1. Disconnect the negative battery cable.

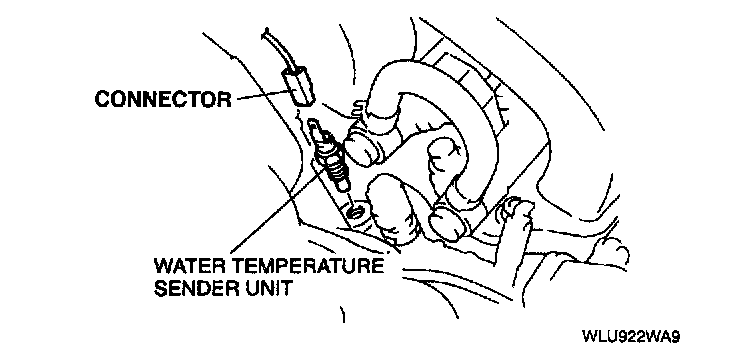

2. Disconnect the water temperature sender unit connector.
3. Remove the water temperature sender unit.

INSTALLATION

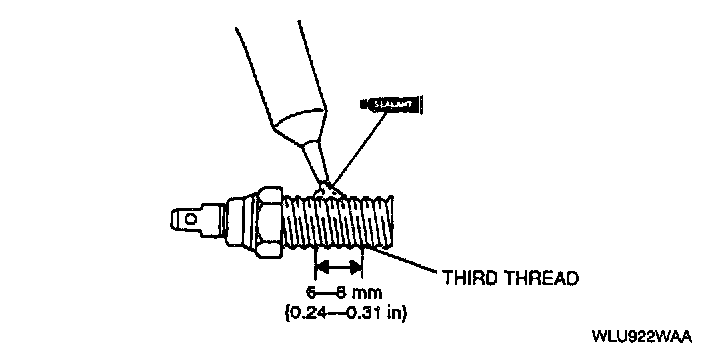

1. Apply sealant from the third thread to top thread.
2. Install the water temperature sender unit.

Tightening torque: 6.4 - 9.3 N.m {65 - 95 kg.cm, 57 - 82 in.lbf}

3. Connect the water temperature sender unit connector.
