Power Mirror Switch: Service and Repair
1.
Disconnect the negative battery cable.
NOTE:
Remove the door screen carefully so that it may be reused.
2.

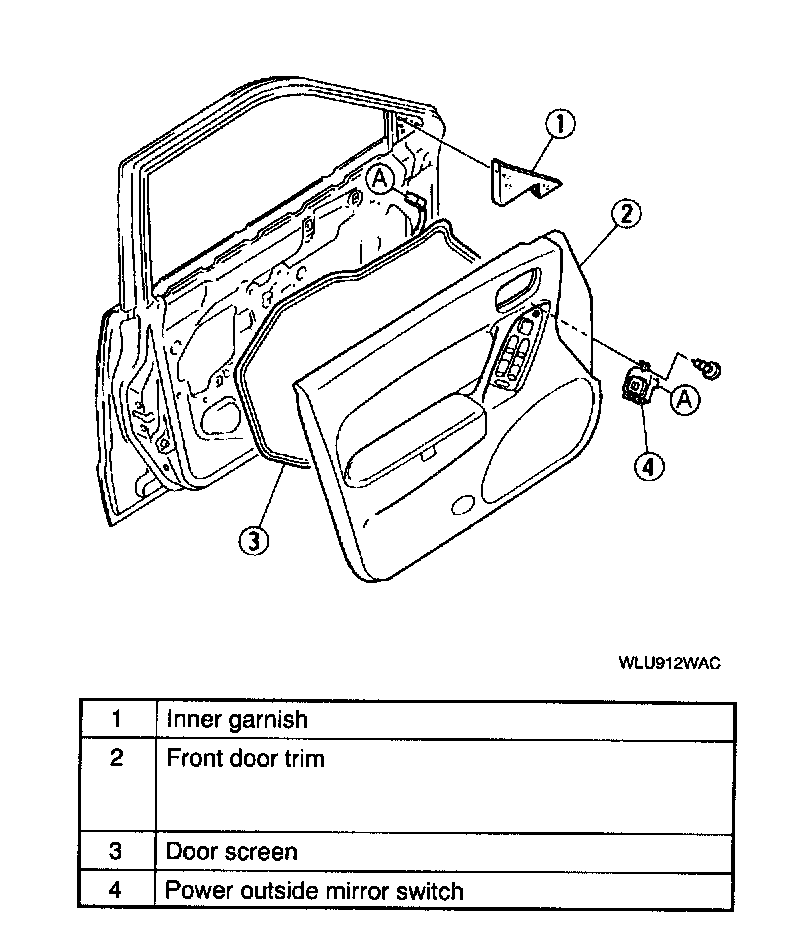

Remove in the order indicated in the table.
3.
Install in the reverse order of removal.
