Daytime Running Lamp Relay: Testing and Inspection
1.
Disconnect the negative battery cable.
2.
Remove the DRL relay.
3.

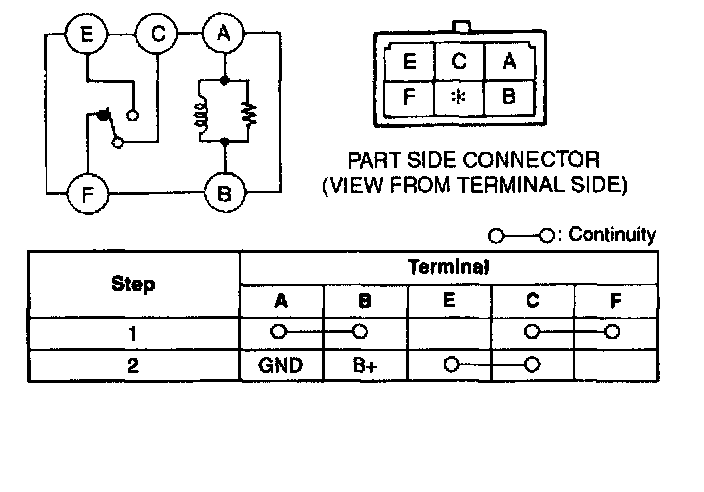

Inspect for continuity between the DRL relay terminals using an ohmmeter.
-
If not as specified, replace the DRL relay.
