EGR Solenoid Valve (Vacuum)

EGR Solenoid Valve (Vacuum)

1. Remove the EGR solenoid valves.







2. Apply battery positive voltage to terminal A and ground terminal B of the EGR solenoid valve (vacuum).

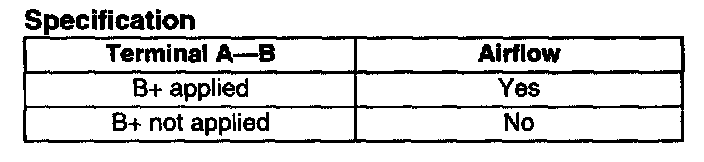

Verify that air flows as shown.
If not as specified, replace the EGR solenoid valve (vacuum).
