Home >> Mazda >> 2000 >> Millennium Edition V6-2.3L DOHC (Miller cycle) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> 7 Engine Runs Rough/Rolling Idle

7 Engine Runs Rough/Rolling Idle

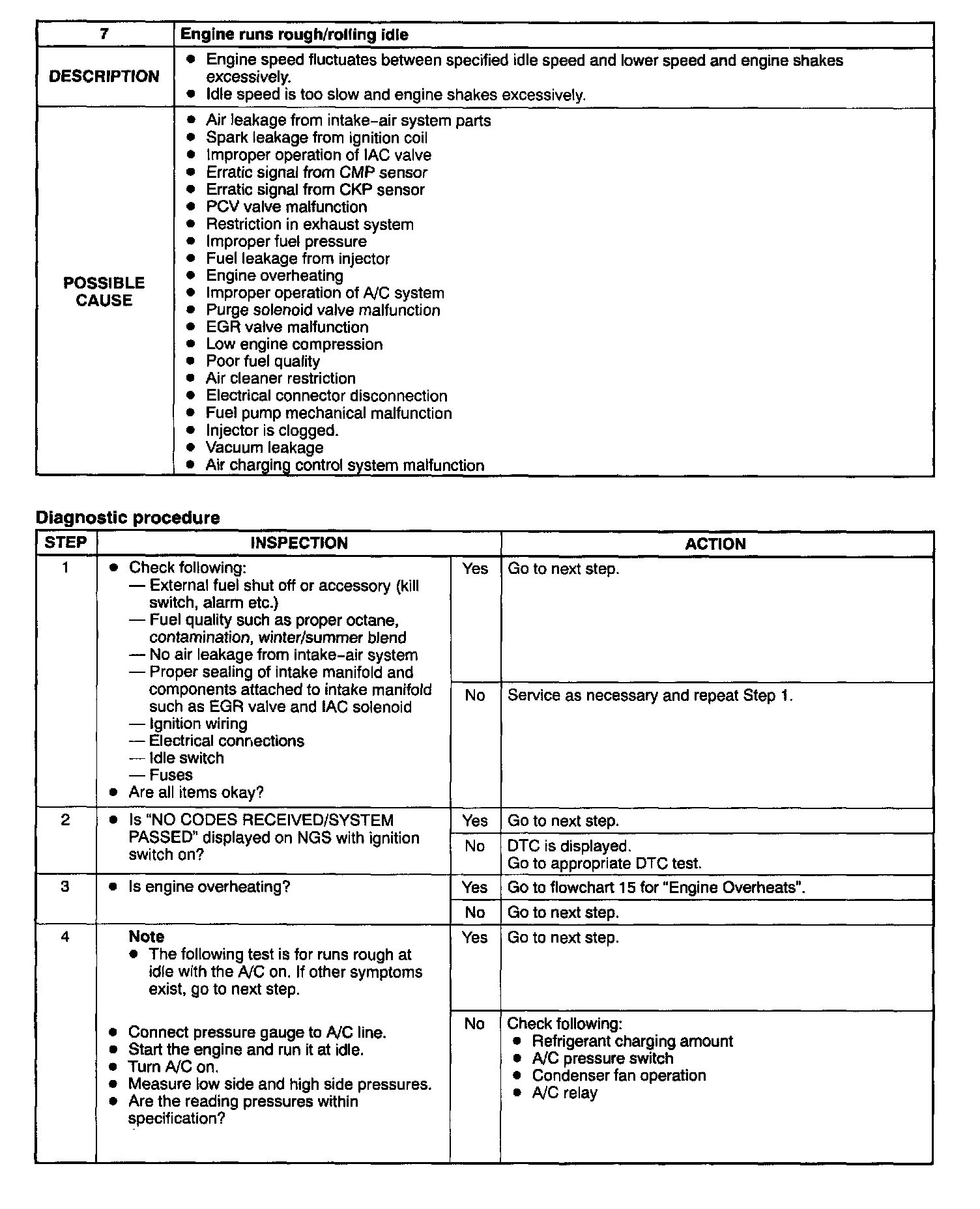

Steps 1 - 4:

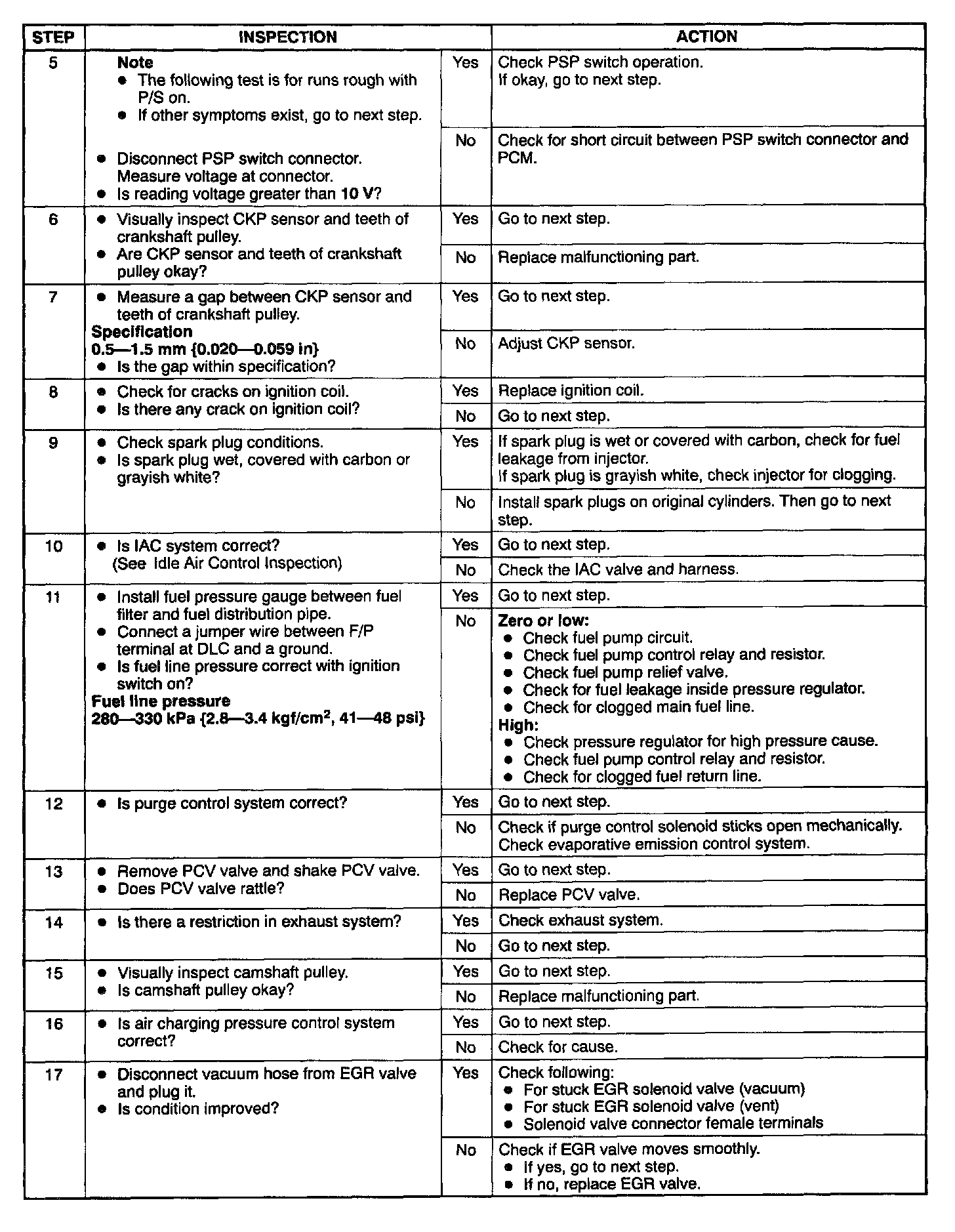

Steps 5 - 17:

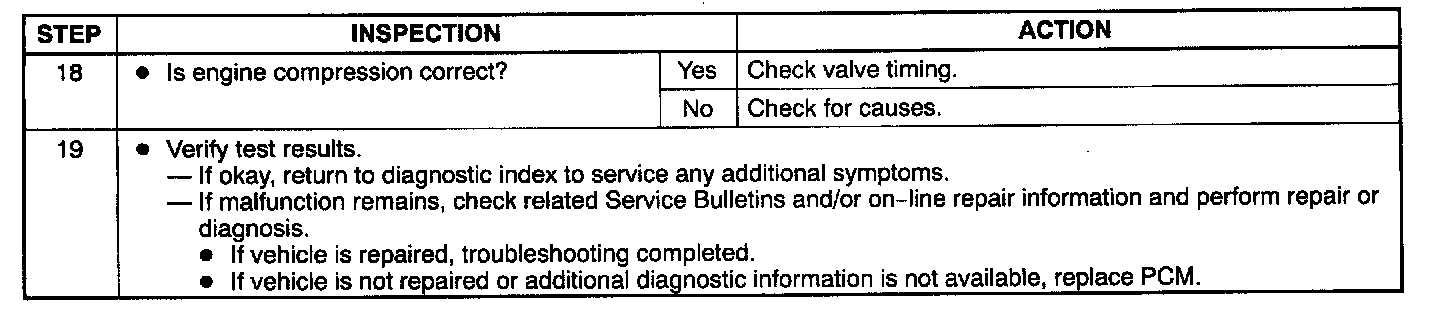

Steps 18 - 19:
