Home >> Mazda >> 2000 >> Millennium Edition V6-2.3L DOHC (Miller cycle) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> 4 Hard Start/Long Crank/Erratic Start/Erratic Crank

4 Hard Start/Long Crank/Erratic Start/Erratic Crank

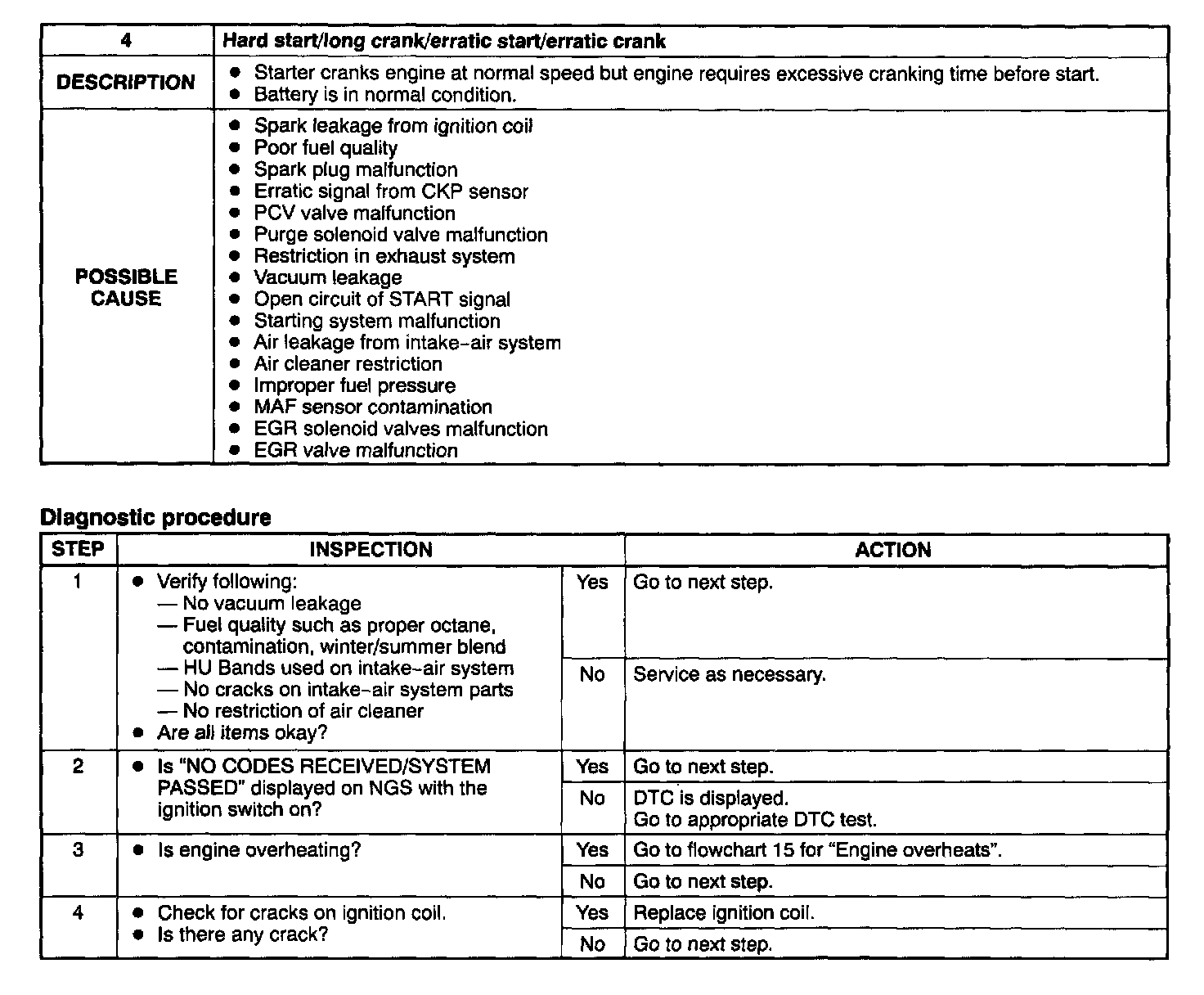

Steps 1 - 4:



Steps 5 - 16:

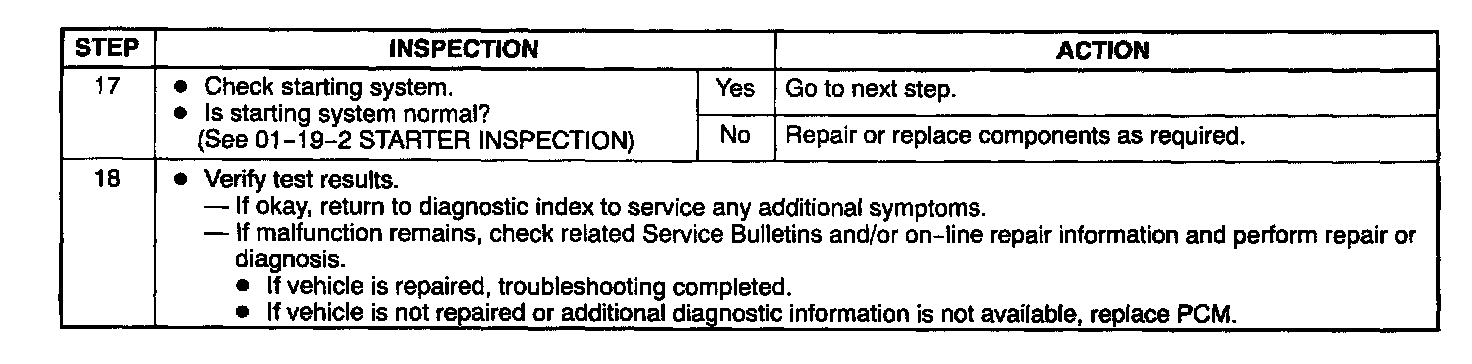

Steps 17 - 18:
