FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 2000 >> Millennium Edition V6-2.3L DOHC (Miller cycle) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> 23 Spark Plug Condition

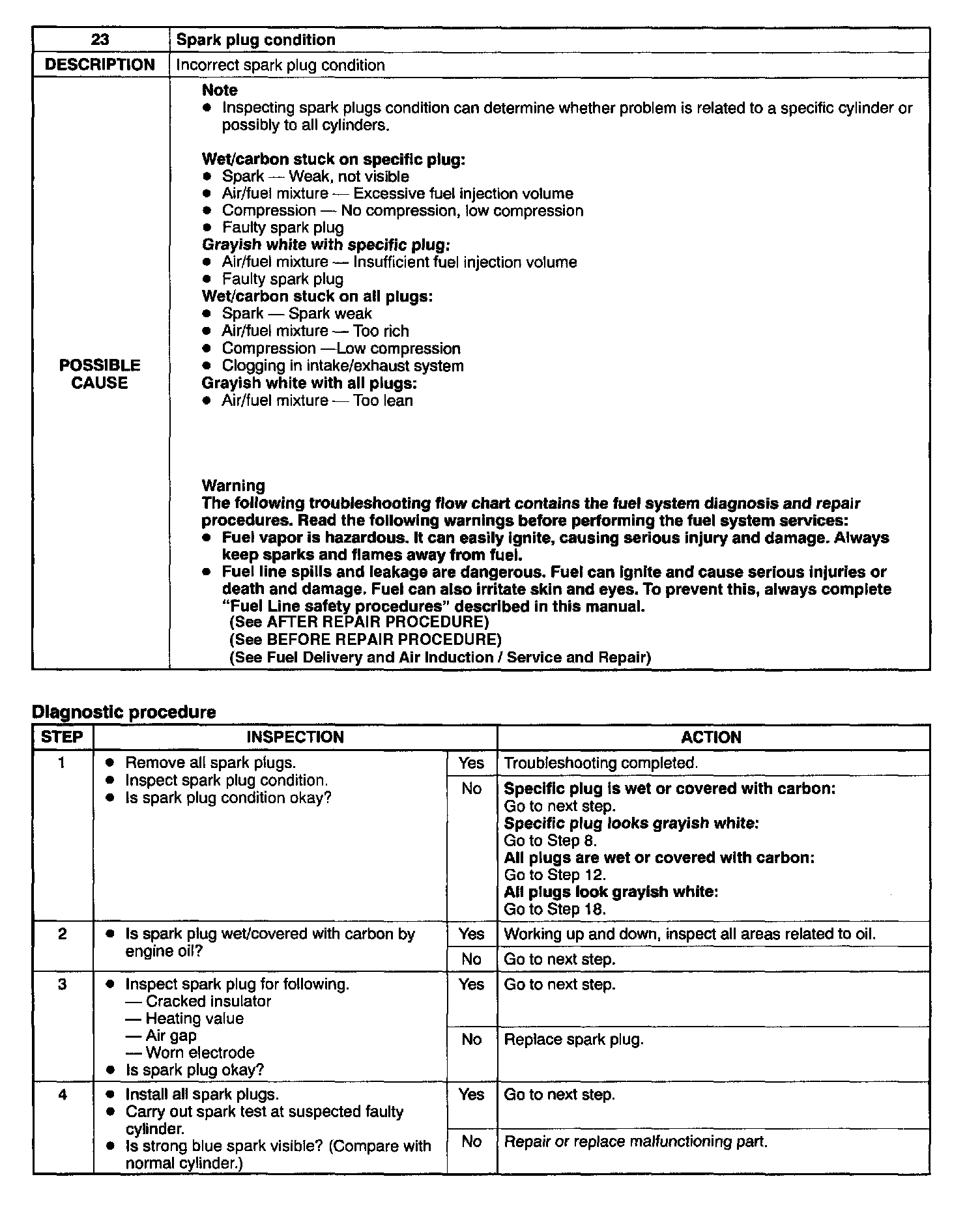

23 Spark Plug Condition

Steps 1 - 4:

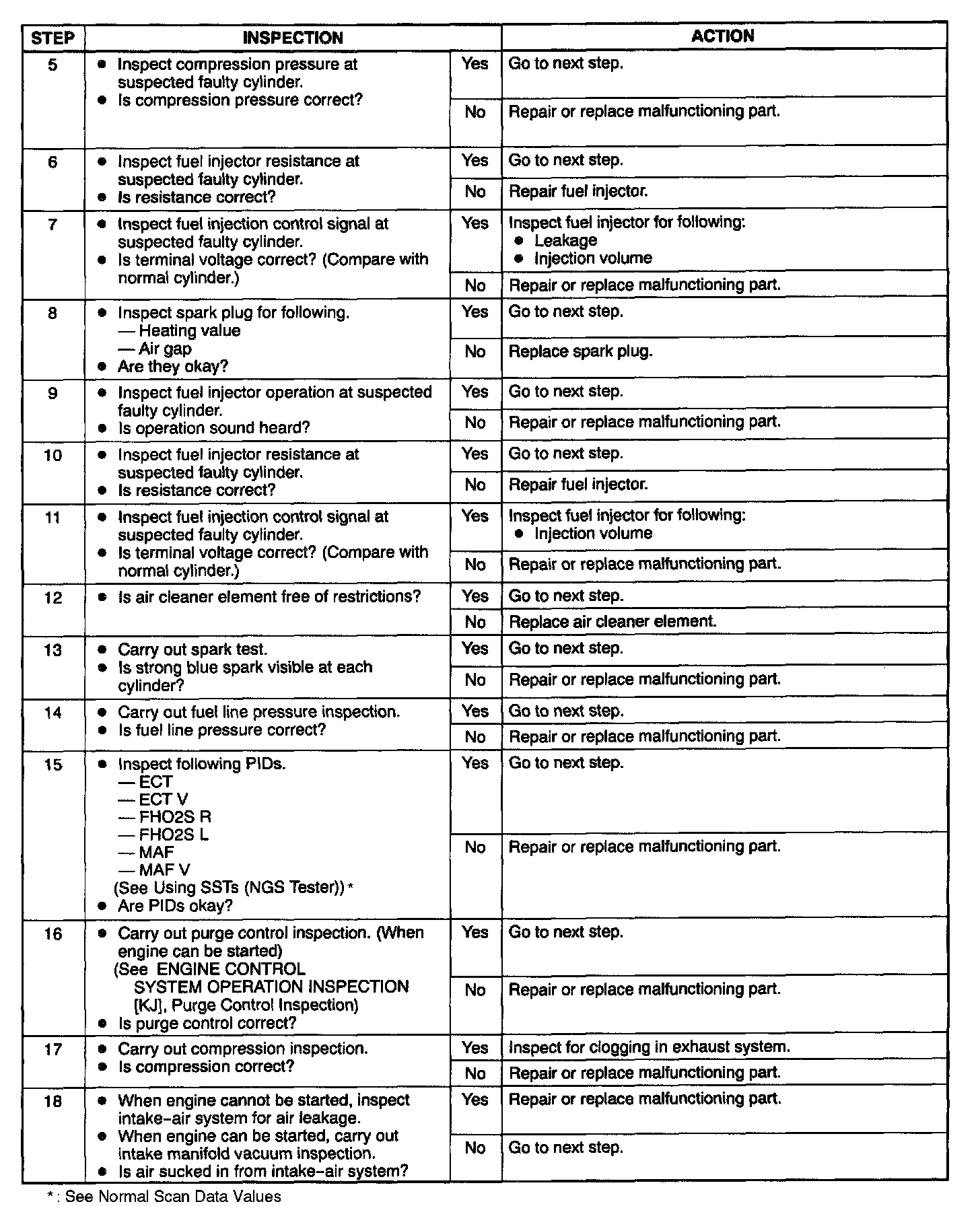

Steps 5 - 18:

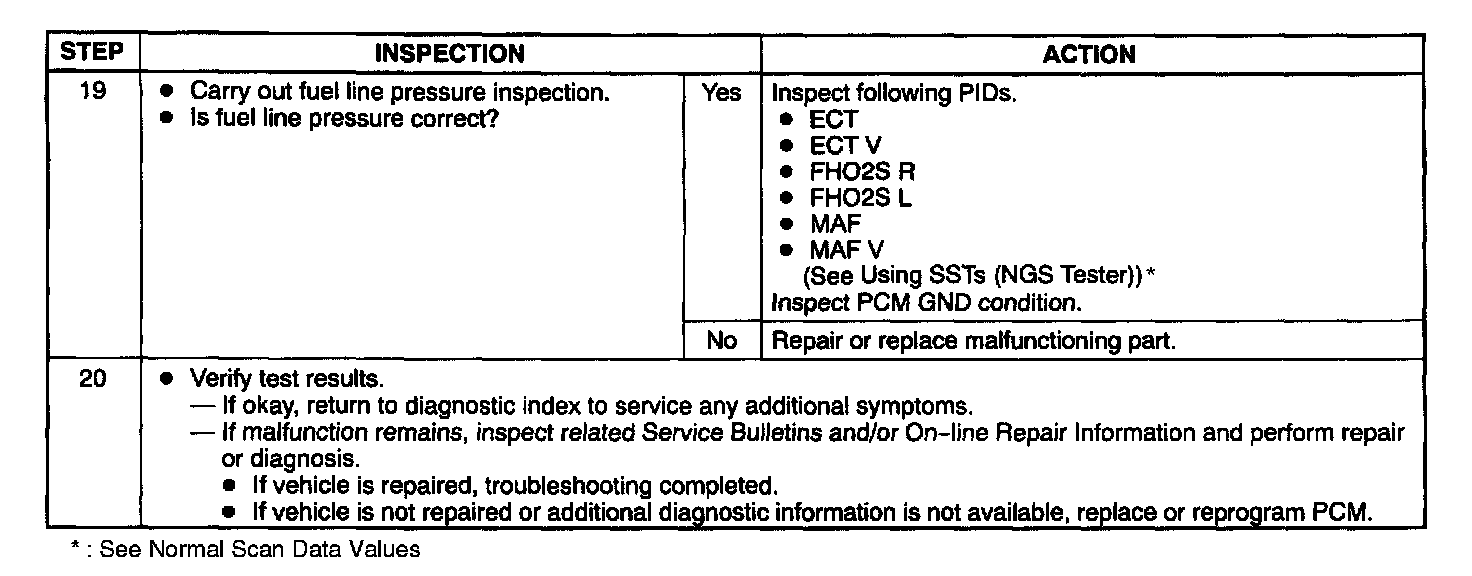

Steps 19 - 20:
