At Serial Communication Terminal (DLC-2) Inspection

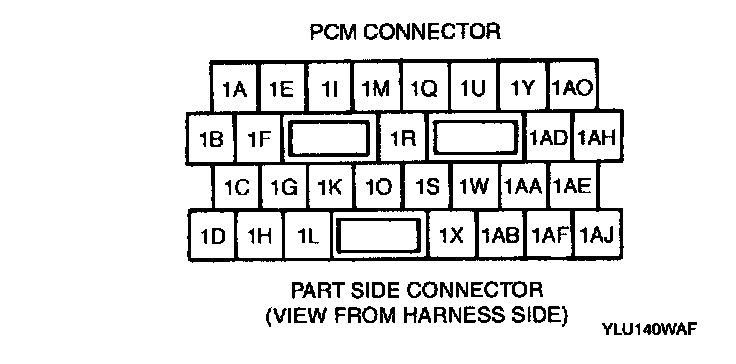

1. Disconnect the PCM connector.




2. Verify the continuity between PCM connector terminal 1Y and DLC-2 KLN terminal.
- If it is not normal, repair the related harnesses.
