Intake Air Temperature (IAT) Sensor Inspection

1. Remove the IAT sensor (air cleaner).

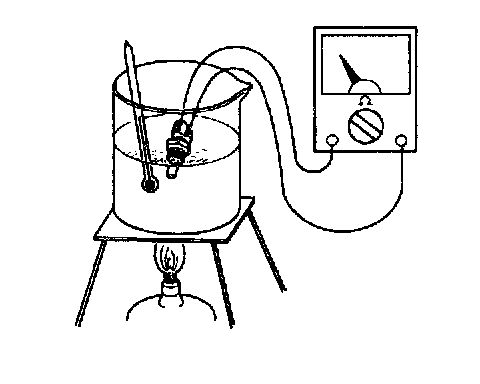

2. Place the sensor and a thermometer in the water.

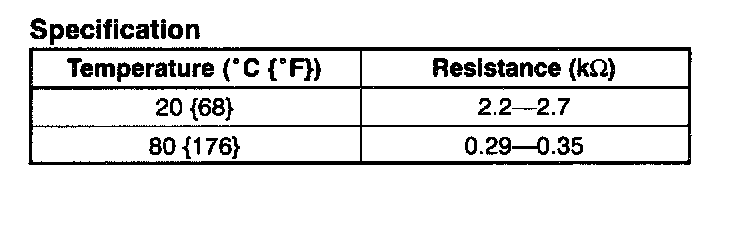

Specification:

3. Gradually heat the water and measure the resistance of the sensor using an ohmmeter.
- If not as specified, replace the IAT sensor (Air cleaner).

Tightening torque: 7.9 - 11.7 N.m {80 - 120 kg.cm, 70 - 104 in.lb}
