Inboard Combination Light
Inboard Combination Light
1.
Disconnect the negative battery cable.
2.
Remove the trunk lid trim.
3.

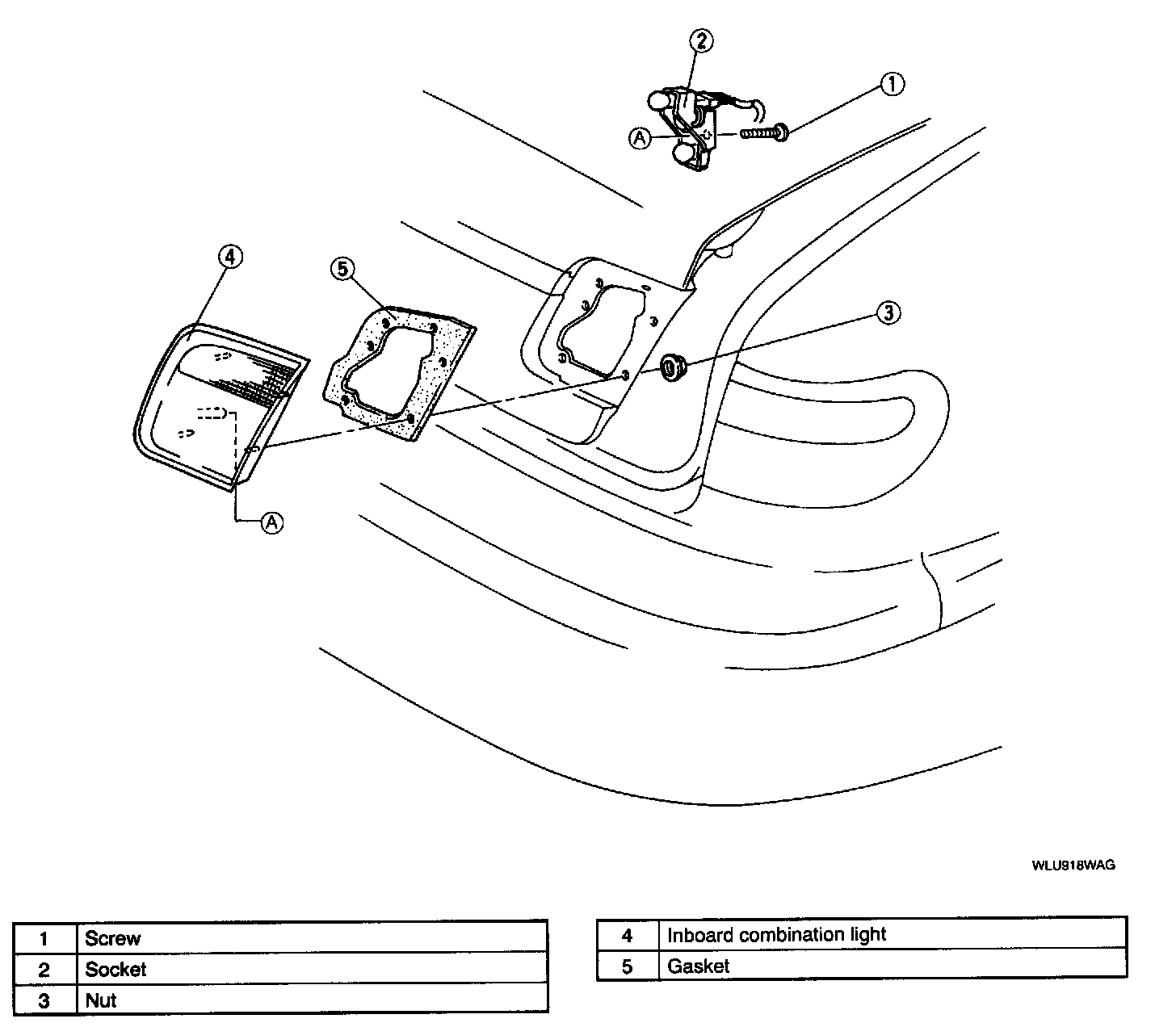

Remove in the order indicated in the table.
4.
Install in the reverse order of removal.
