Home >> Mazda >> 2000 >> Millennium Edition V6-2.3L DOHC (Miller cycle) >> Repair and Diagnosis >> Lighting and Horns >> Relays and Modules - Lighting and Horns >> Horn Relay >> Testing and Inspection

Horn Relay: Testing and Inspection

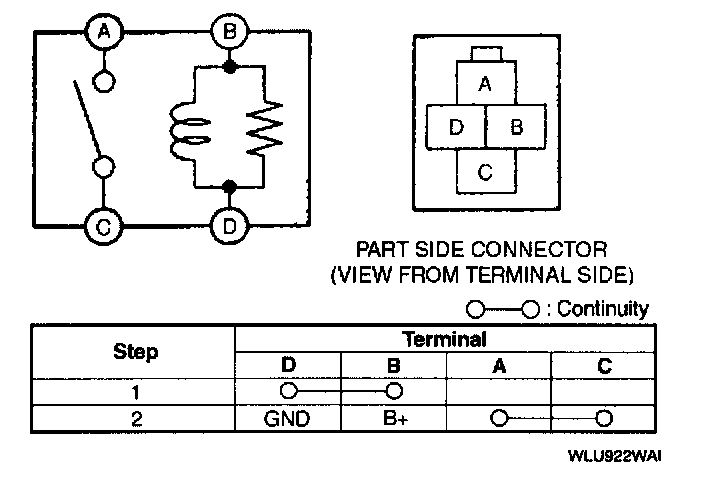

Apply B+ and inspect for continuity between the horn relay terminals.
- If not as specified, replace the horn relay.
