Fog/Driving Lamp: Service and Repair
1.
Disconnect the negative battery cable.
2.
Remove the headlight.
3.
Remove the splash shield.
4.

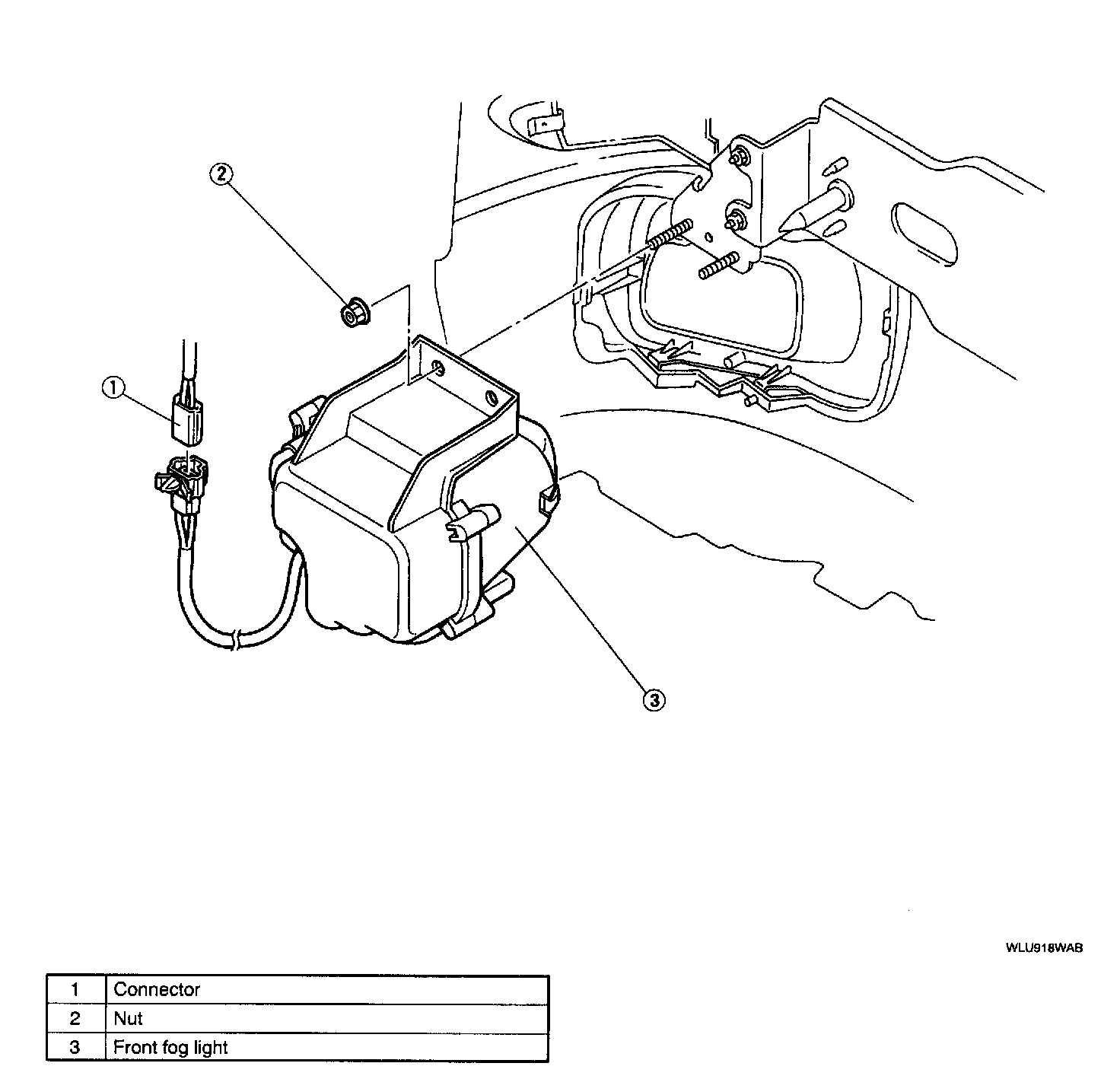

Remove in the order indicated in the table.
5.
Install in the reverse order of removal.
