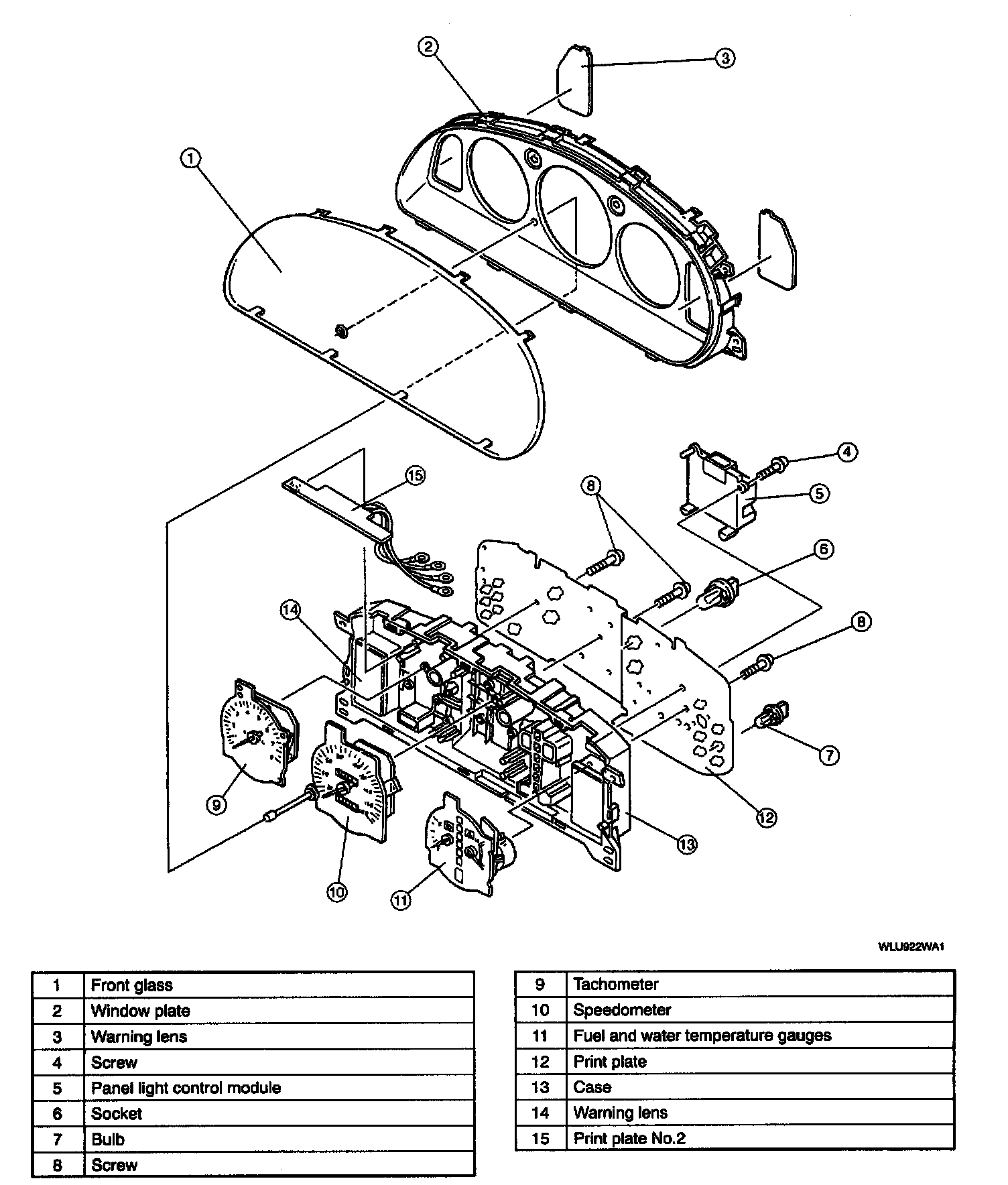

Instrument Cluster Disassembly and Assembly
Instrument Cluster Disassembly and Assembly
1.
Disassemble in the order indicated in the table.
2.
Assemble in the reverse order of disassembly.
