NGS Tester Hook-Up Procedure

NOTE: Make sure that the ignition switch is at LOCK.

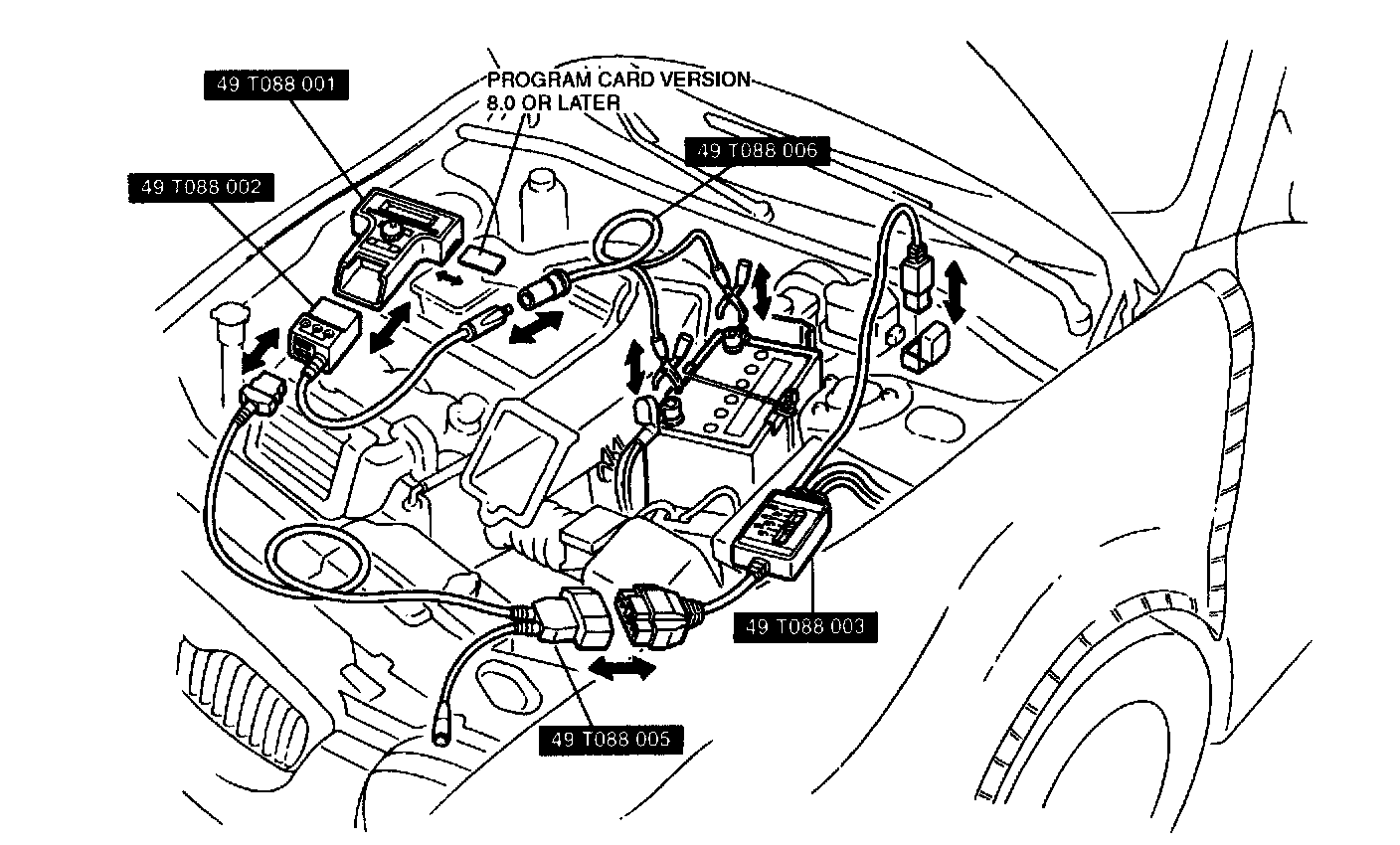

1. Insert the SST (49 T088 002) and the SST (program card version 8.0 or later) into the SST (49 T088 001).
2. Connect the SST (49 T088 005) to the SST (49 T088 002).
3. Connect the SST (49 T088 003) to the SST (49 T088 005).
4. Connect the SST (49 T088 003) to the DLC.
5. Connect the SST (49 T088 006) to the SST (49 T088 002).
6. Connect the SST (49 T088 006) to the battery.
