Coolant Temperature Sensor / Switch HVAC: Testing and Inspection

WATER TEMPERATURE SENSOR INSPECTION
1. Remove the water temperature sensor.
2. Measure the temperature around the water temperature sensor.

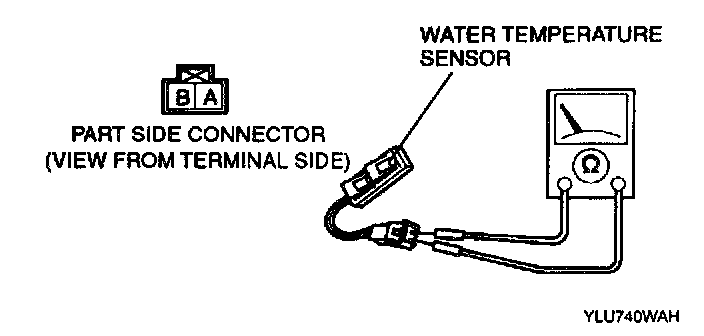

3. Measure the resistance between terminals A and B of the water temperature sensor connector (male).

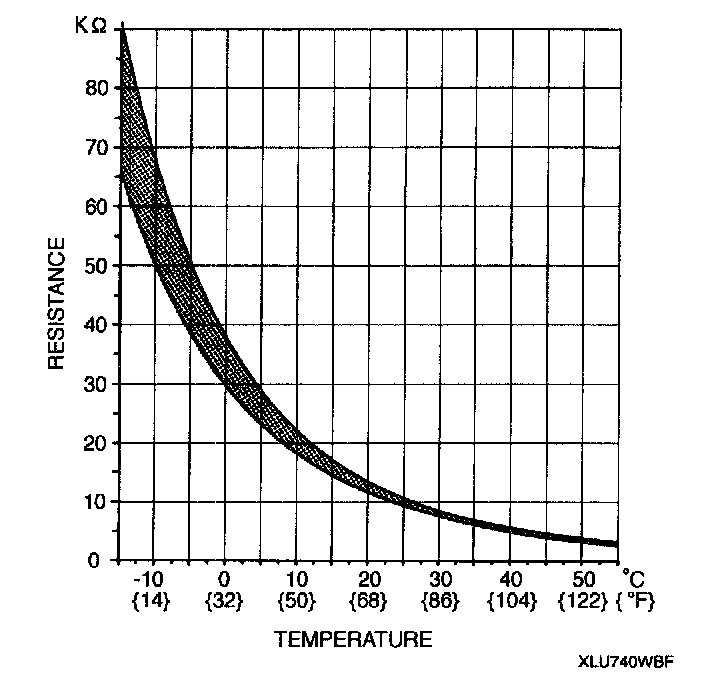

- If the resistance is not in the shaded zone indicated in the graph, replace the water temperature sensor.
