Home >> Mazda >> 2000 >> Millennium Edition V6-2.3L DOHC (Miller cycle) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Pid/Data Monitor Table

Pid/Data Monitor Table

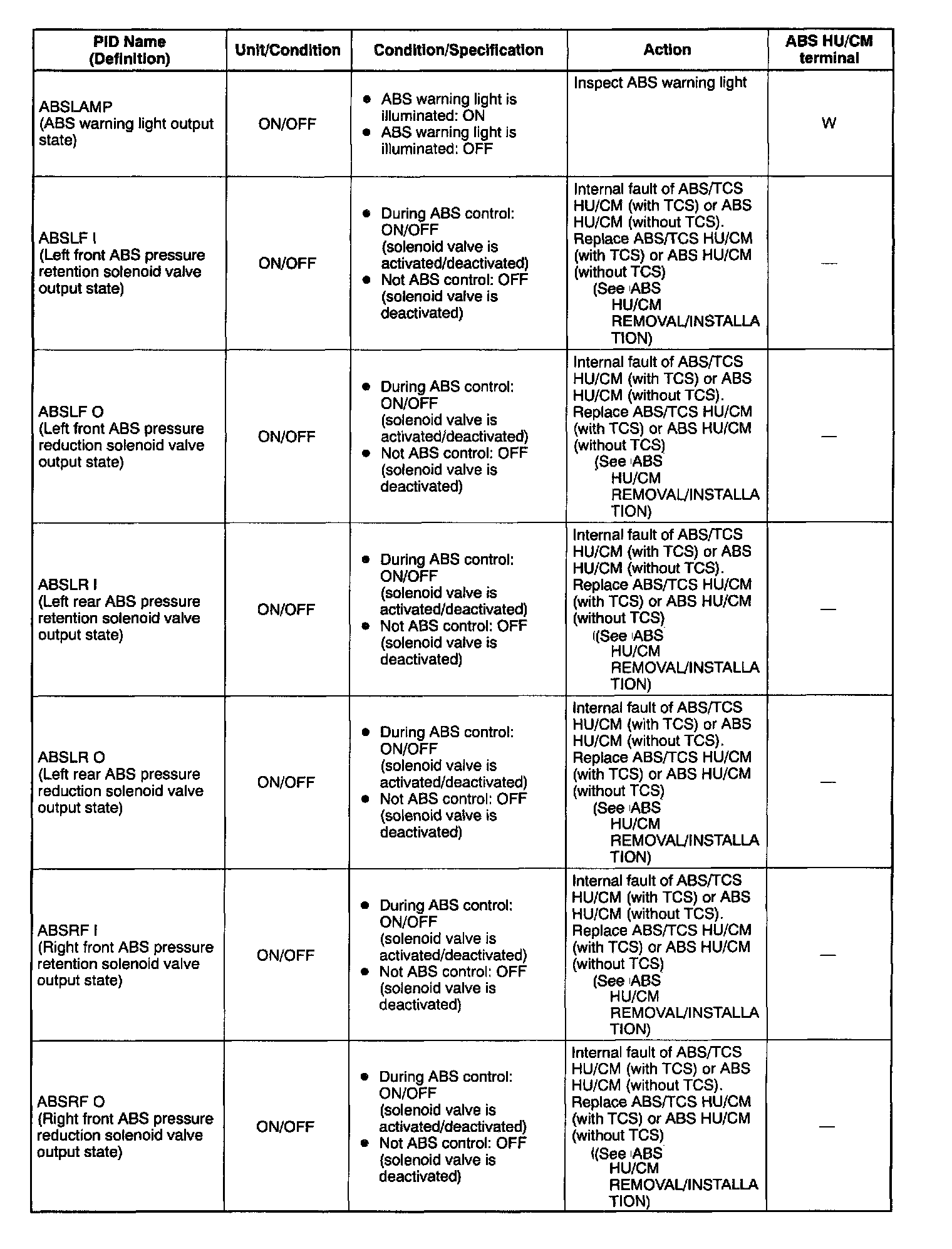

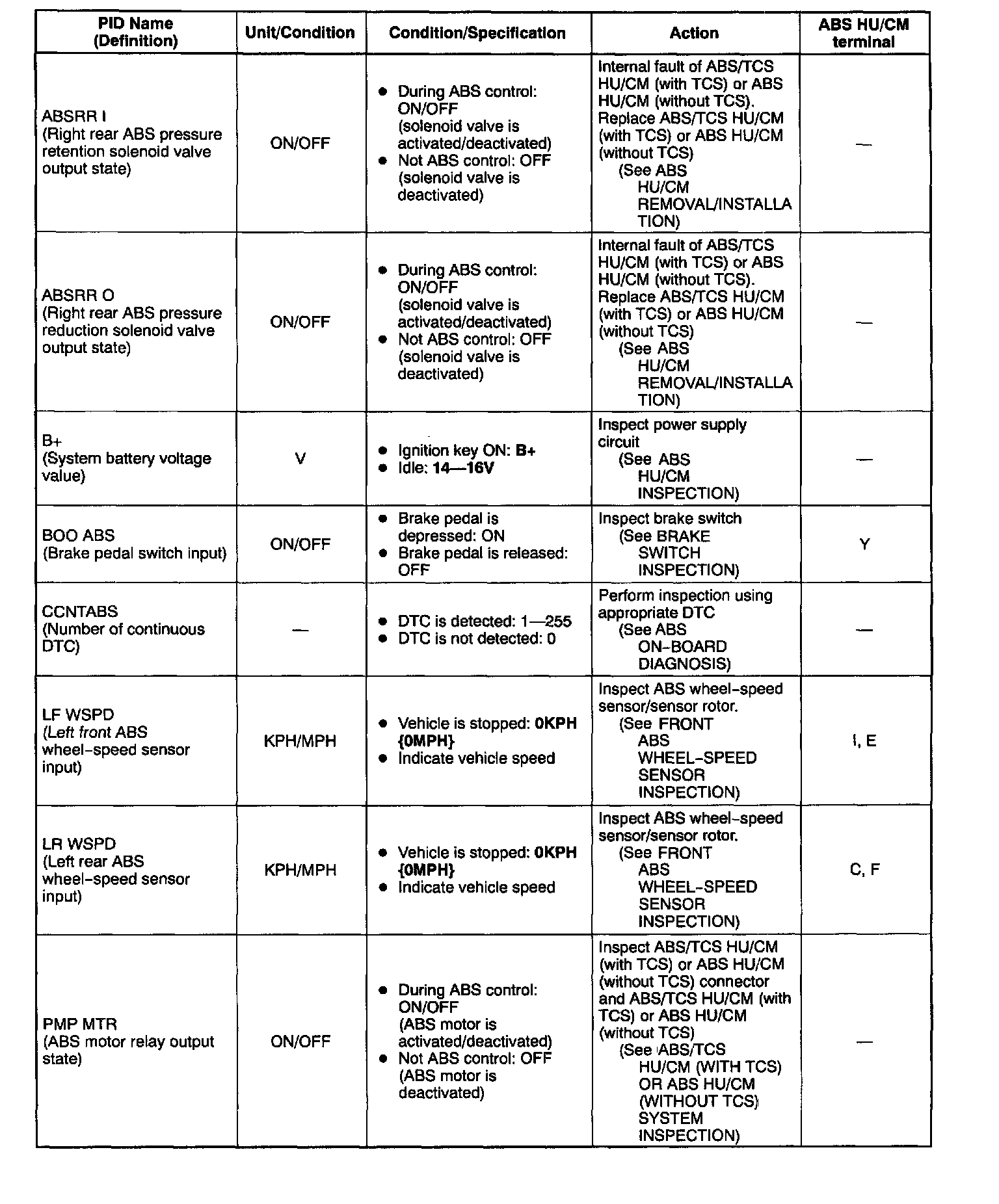

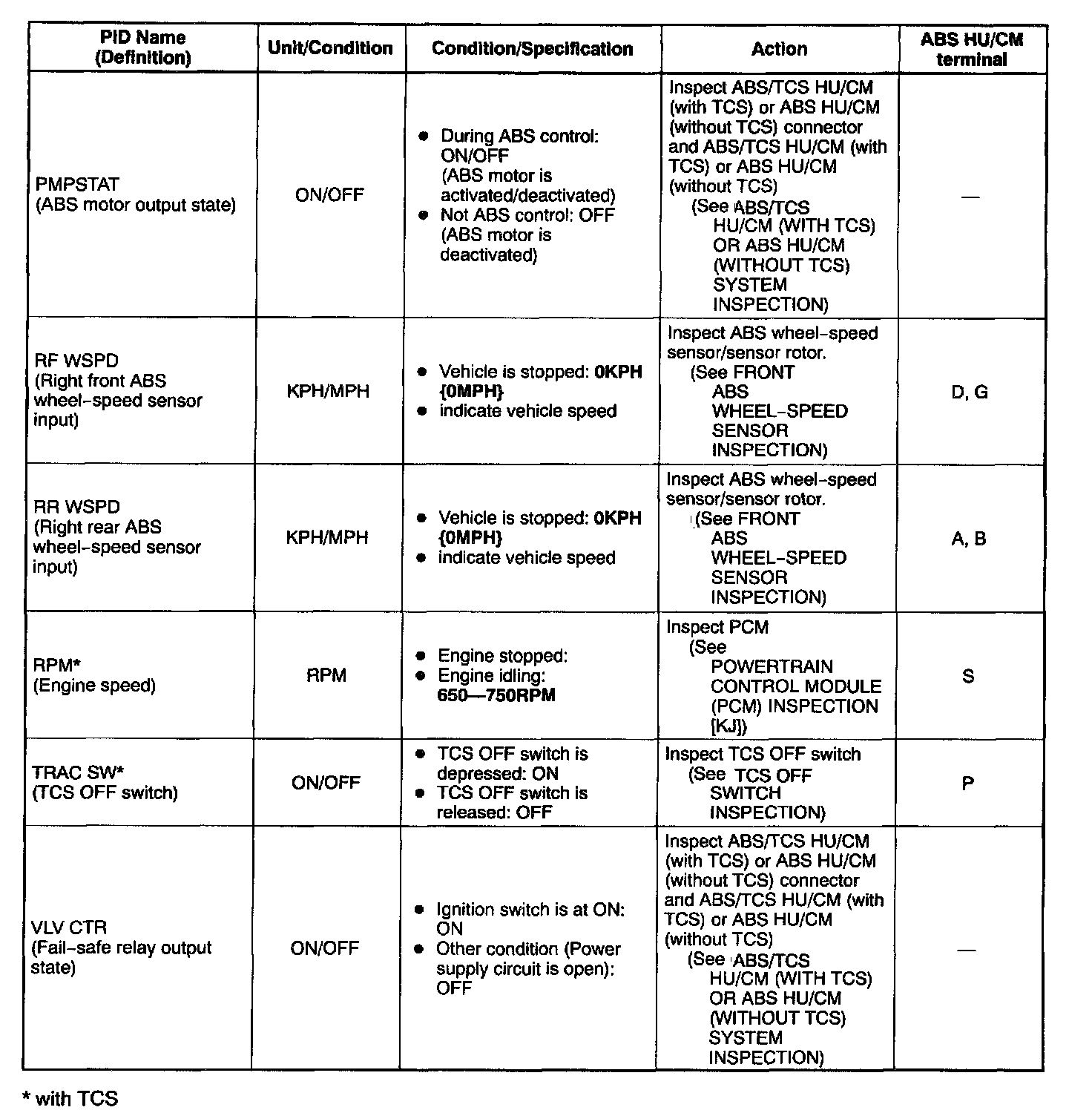

PID/DATA MONITOR TABLE
