Trunk Side Trim
Trunk Side Trim
1.
Remove the trunk end trim.

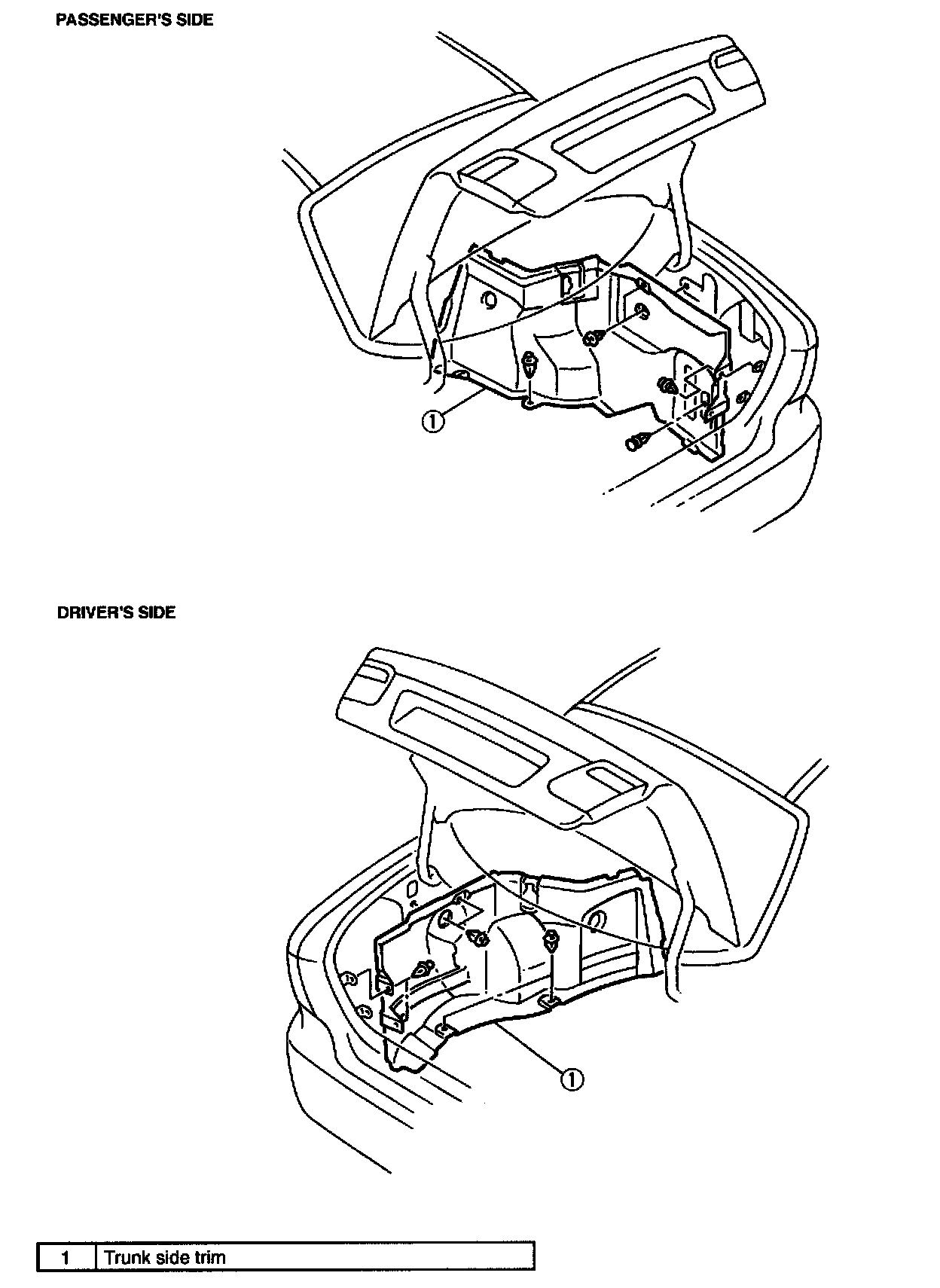

Passenger's Side And Driver's Side:
2.
Remove as indicated in the table.
3.
Install in the reverse order of removal.
