Front Door Trim

1. Disconnect the negative battery cable.

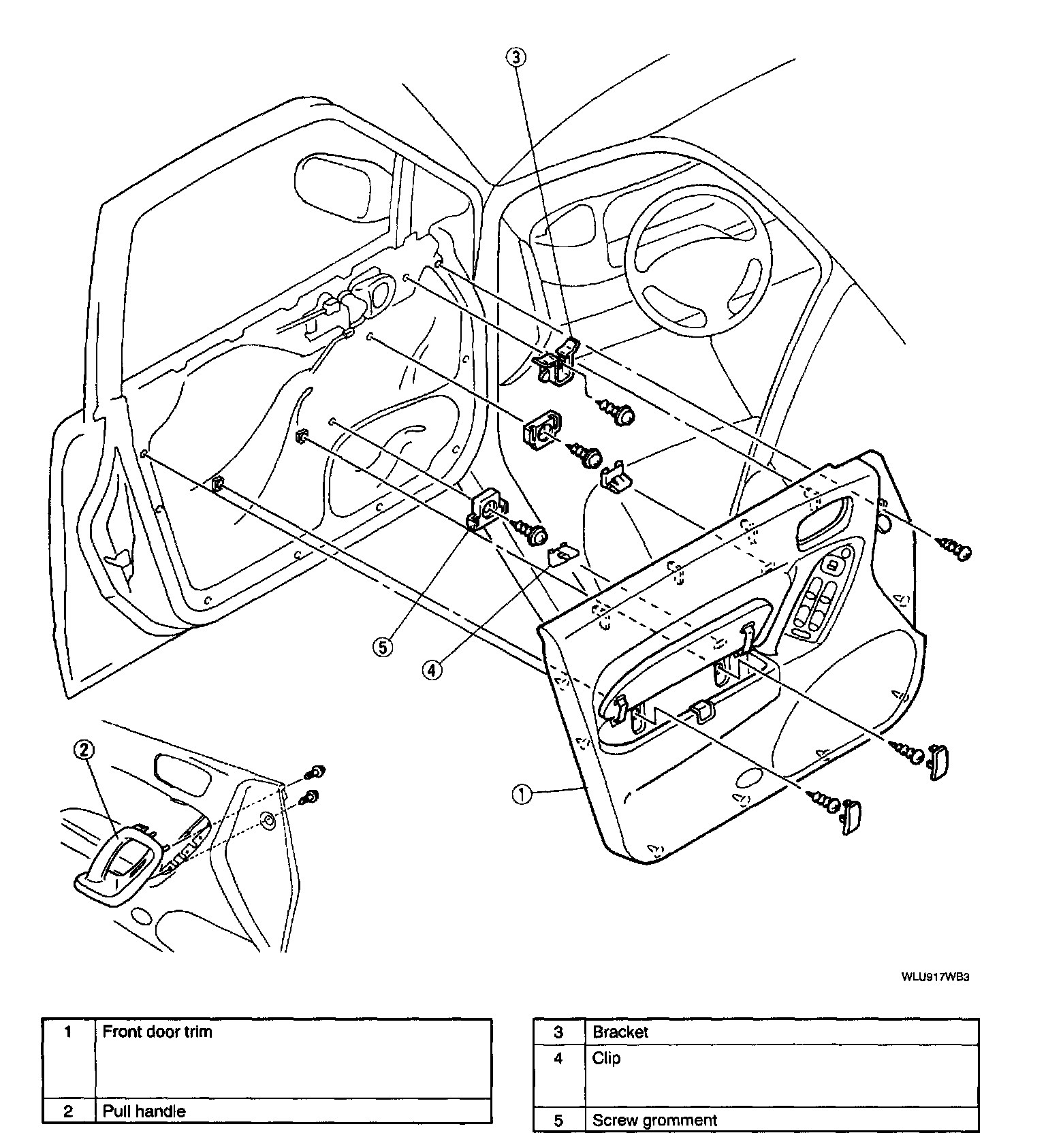

2. Remove the inner garnish and inner handle cover.




3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

Front Door Trim Removal Note

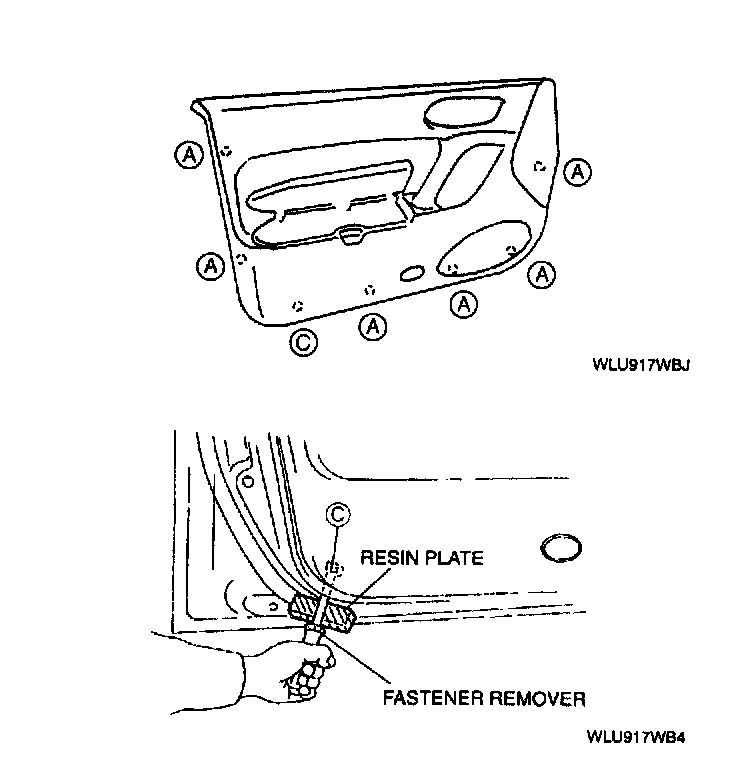

1. Loosen the inner handle installation screw.
2. Pull the door trim to remove fasteners A from the body.




3. By inserting the fastener remover as shown, remove fastener C. Protect the body with a resin plate to prevent it from being dented or damaged.

NOTE: Fastener C cannot be reused.

CAUTION: If the clips B are pulled forward, the door trim will break.

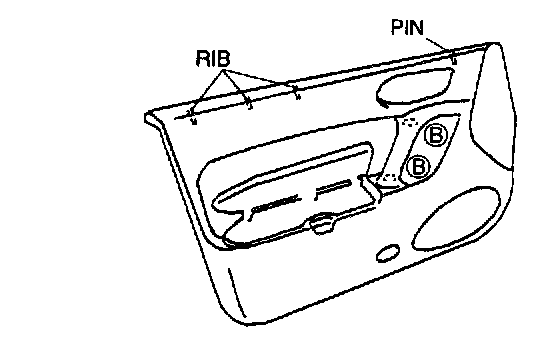

4. Lift the door trim up. Remove the ribs, pin and clips B together.
5. Disconnect the wiring harnesses.

Clip Removal Note

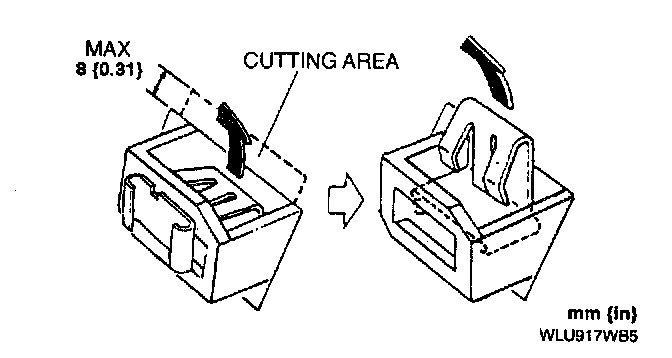

1. Remove the clips from the door trim as shown in the figure.

NOTE: If the clips are difficult to remove, cut a part of the trim using a razor knife.

Clip installation Note

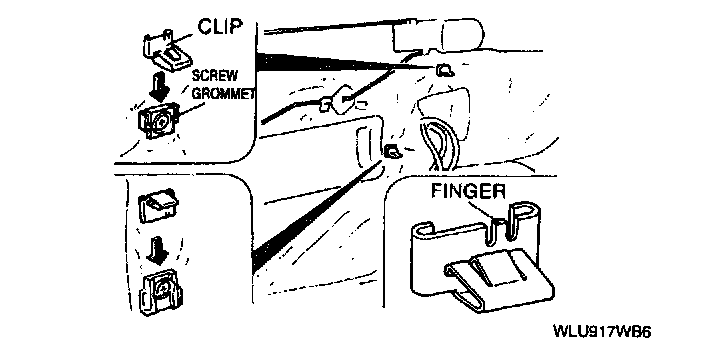

1. Install the grommets as shown in the figure.




2. Point the finger of the upper clip upward and the finger of the lower clip downward and slide the clips onto the grommets.
- If the clips are installed upside-down, the door trim cannot be installed properly and the clips will be impossible to remove from the trim without breakage.

Front Door Trim installation Note

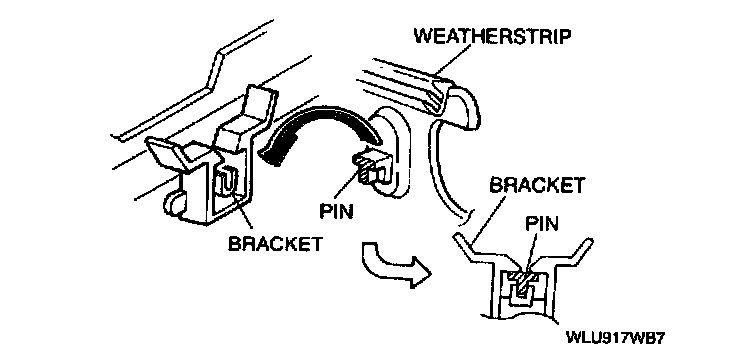

1. Hook the front door trim weatherstrip over the body.




2. Push the front door trim down to engage the pin to the bracket.
3. Push the door trim to secure the clips and fasteners.
4. install the inner handle installation screw.
