Front Scuff Plate

1. Remove as indicated in the table.
2. Install in the reverse order of removal.

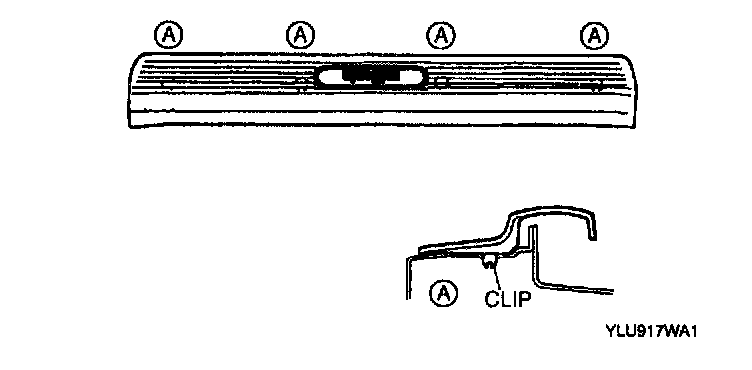

Front Scuff Plate Removal Note
- Pull the front scuff plate upward to disengage the clips from the body.

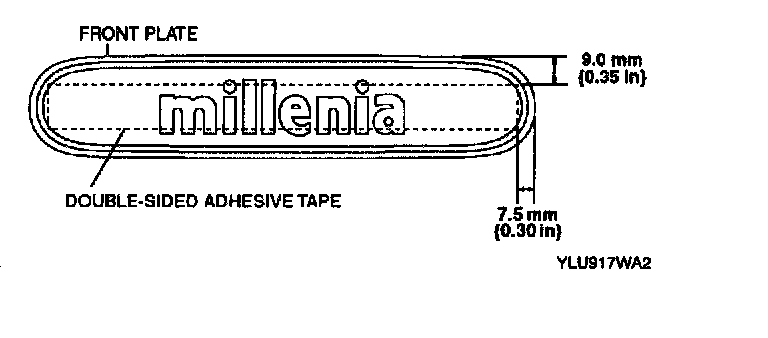

Front Plate Removal Note
- Pull the front plate upward to strip off the double-side adhesive tape from the front scuff plate using a flathead screw driver.

NOTE: The front plate is installed with double-sided adhesive tape.
