Trunk Lid Opener Relay
Trunk Lid Opener Relay
1.
Remove the trunk lid opener relay.
2.

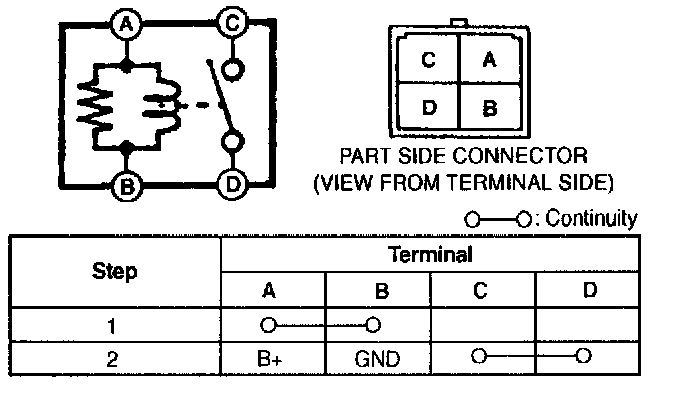

Apply battery voltage and inspect for continuity between the relay terminals.
-
If not as specified, replace the trunk lid opener relay.
