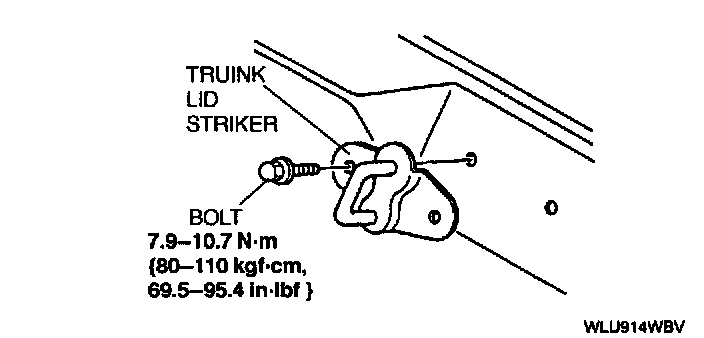

Trunk Lid Striker
Trunk Lid Striker
1.
Disconnect the negative battery cable.
2.
Remove the trunk end trim.
3.
Remove the trunk lid striker.
4.
Install in the reverse order of removal.
5.
Adjust the trunk lid striker.
