No.1 - On-Board Diagnostic (OBD)Active Verification Buzzer Inop

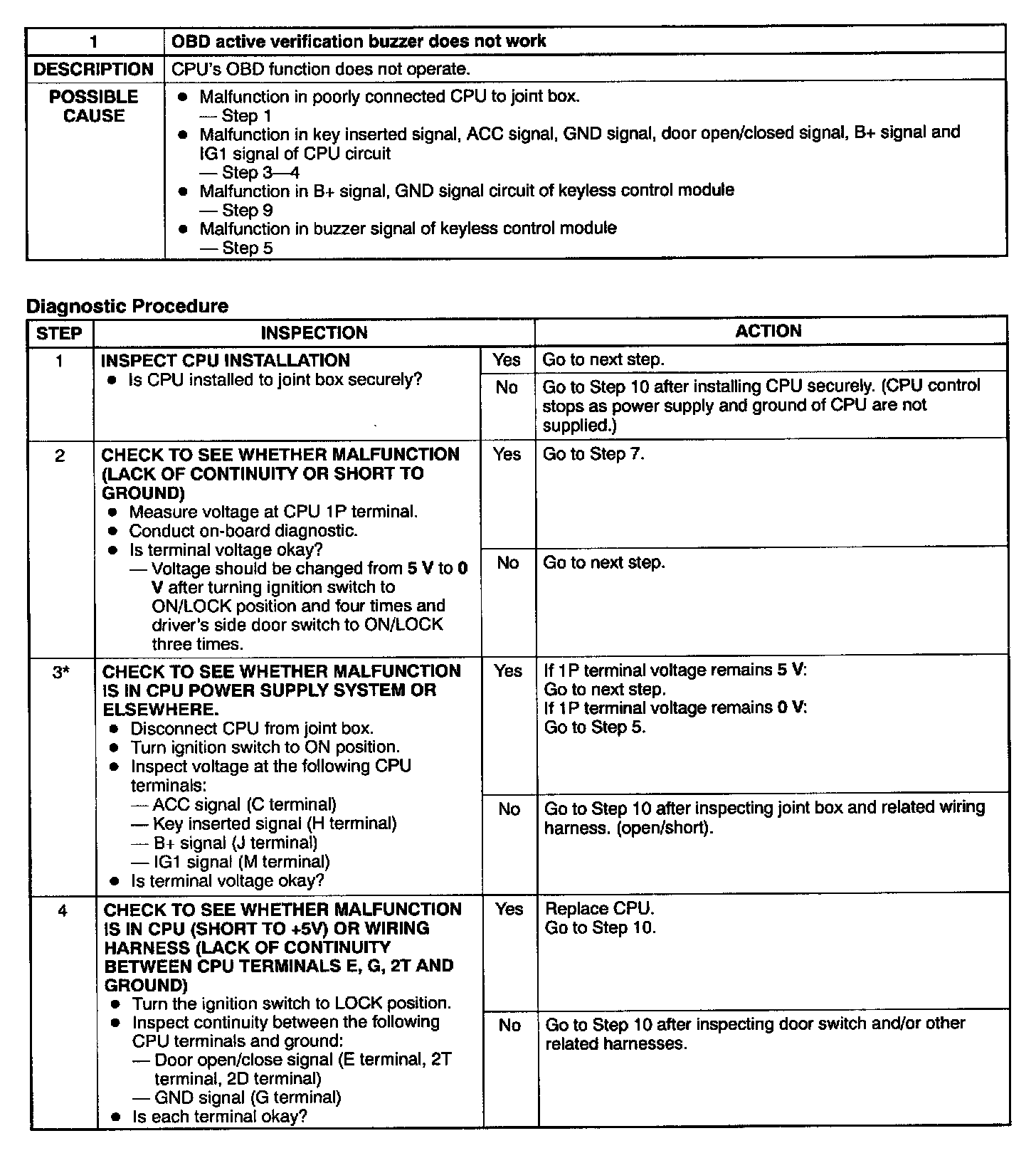

Steps 1 - 4:

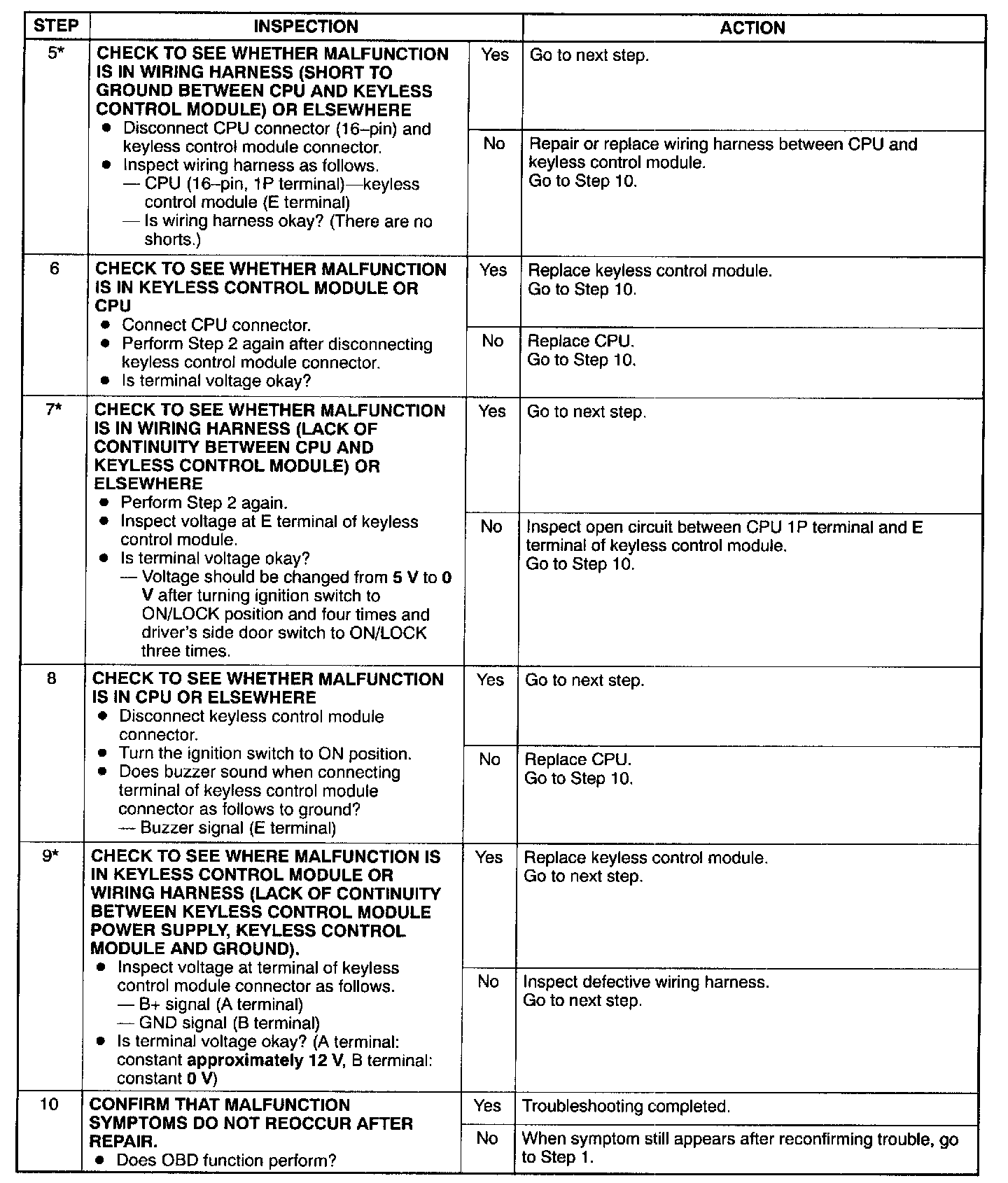

Steps 5 - 10:

NOTE:
- When customer complains about "Door lock, trunk lid unlock, panic alarm do not function with transmitter at all." Confirm customer is using method based or keyless entry system preliminary inspection and perform proper action.
- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harness are connected correctly and undamaged.
