Home
>>
Mazda
>>
2000
>>
Millenia V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Distributor
>>
Service and Repair
>>
Removal and Installation
Removal and Installation
1.
Disconnect the negative battery cable
2.

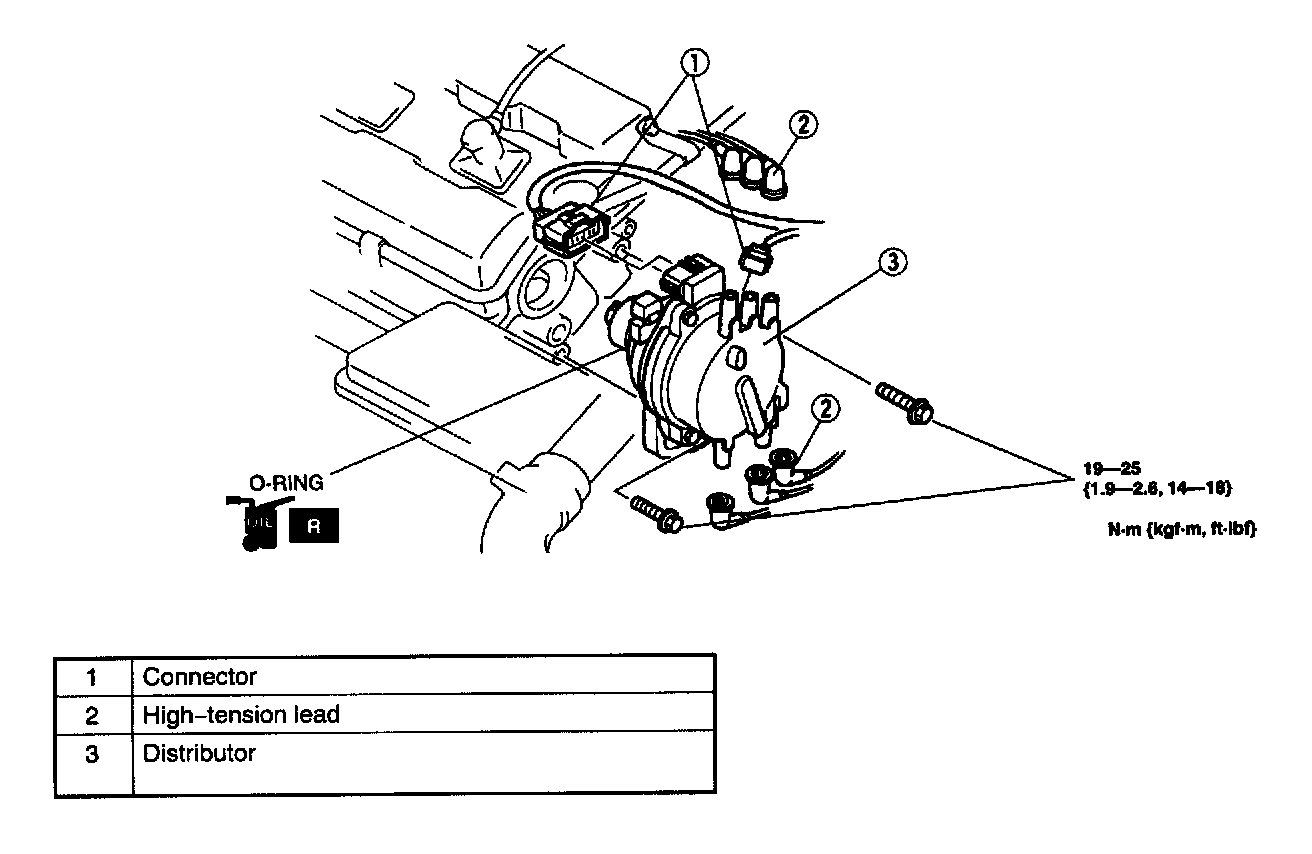

Remove in the order indicated in the table.
3.
Install in the reverse order of removal.
