EGR Boost Control Solenoid: Testing and Inspection
1.

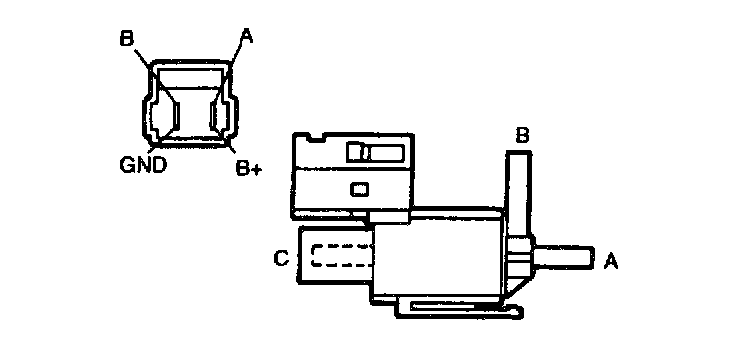

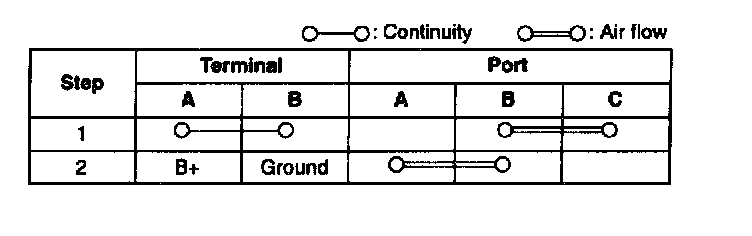

Inspect air flow between ports of the solenoid valve under the following condition.
-
If not as specified, replace the EGR boost sensor solenoid valve.
