Compressor Clutch: Testing and Inspection

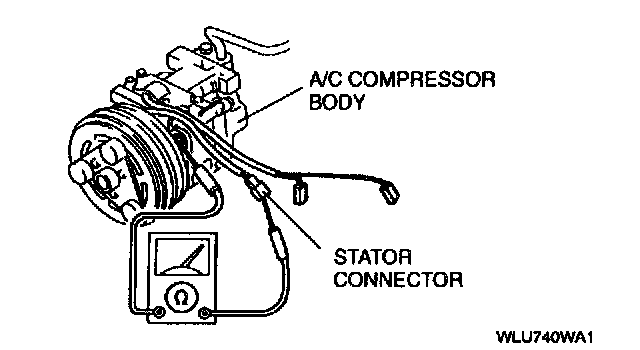

MAGNETIC CLUTCH INSPECTIONStator
1. Disconnect the stator connector.
2. Set the ohmmeter to the X 1000 ohms range.
3. Verify that there is continuity between the stator connector (male) and A/C compressor body.
- If there is no continuity, replace the stator.
