Compressor Clutch: Service and Repair

1. Remove the A/C compressor.

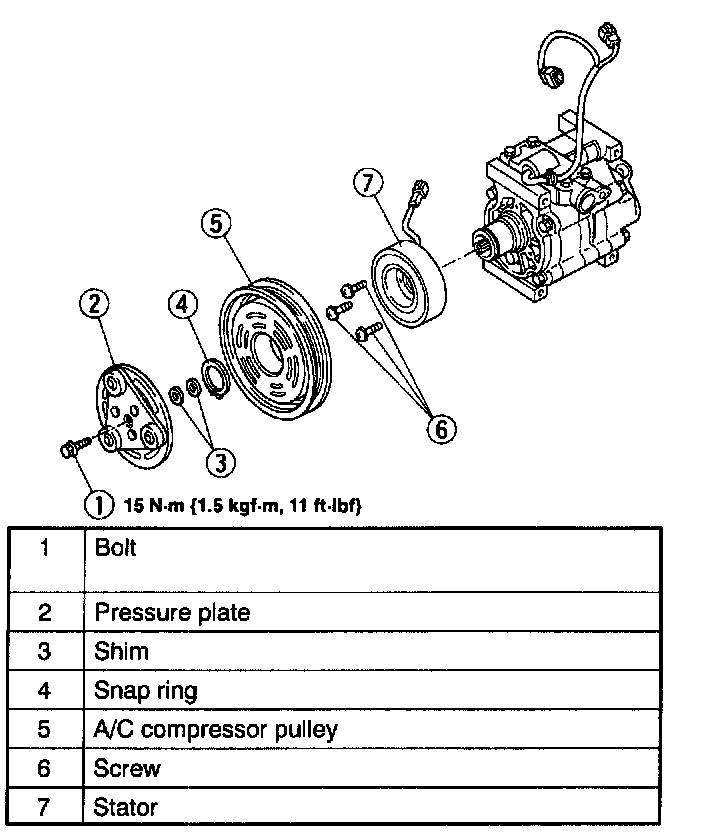

2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.
4. Adjust the magnetic clutch.




Bolt Disassembly Note

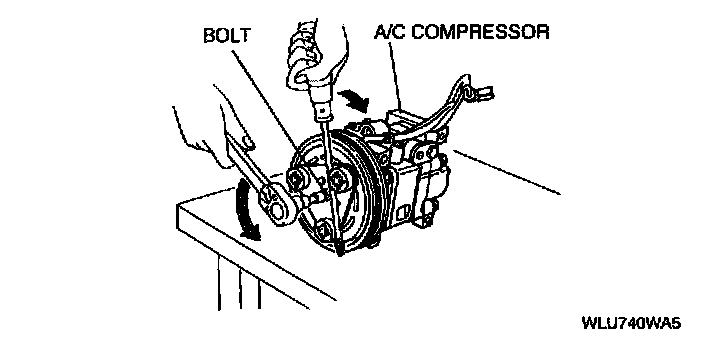

When removing the bolt, hold the pressure plate in place as shown in the figure.
