Cruise Control Servo: Service and Repair
1.

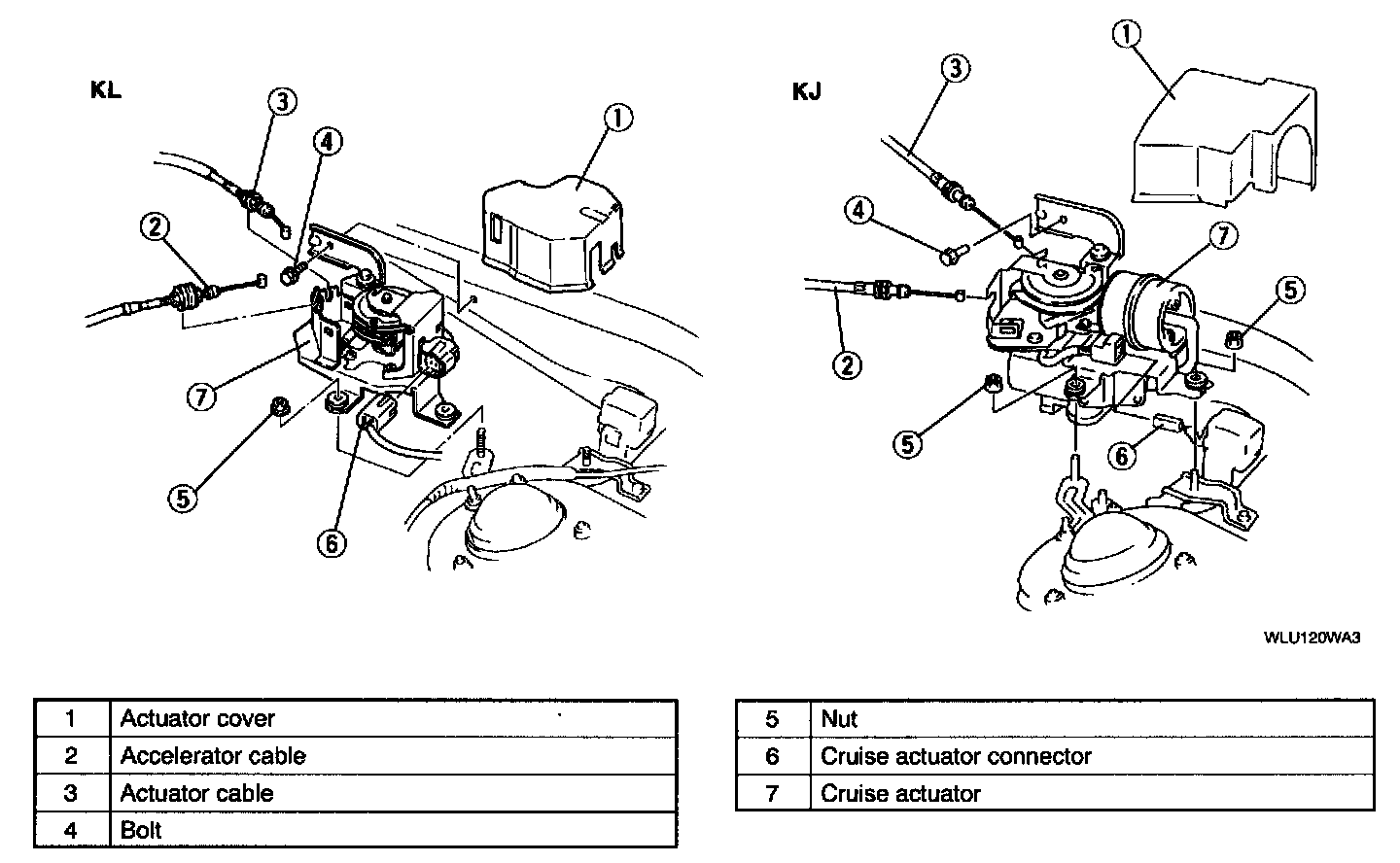

Remove in the order indicated in the table.
2.
Install in the reverse order of removal.
3.
Adjust the cruise actuator.
