Ignition Switch: Testing and Inspection
1.
Remove the column cover.
2.
Disconnect the
ignition switch
connector.
3.

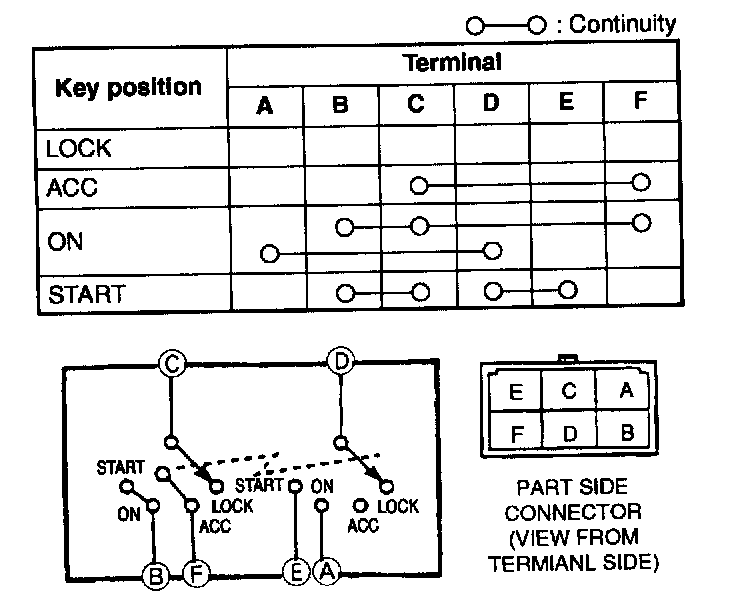

Inspect for continuity between the
ignition switch
terminals using an ohmmeter.
-
If not as specified, replace the
ignition switch
.
