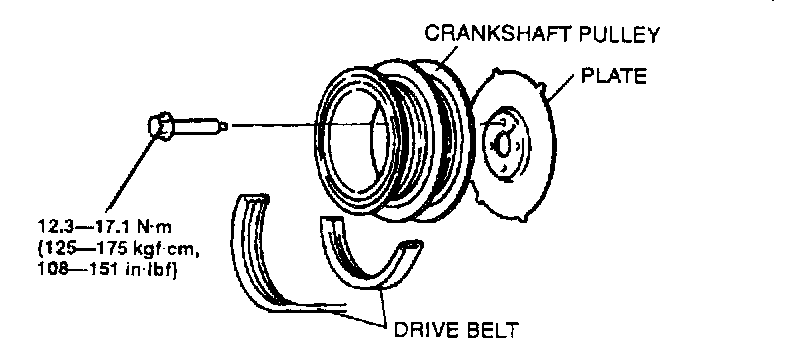

Crankshaft Position Timing Ring: Service and Repair

1. Remove the drive belt.




2. Remove the crankshaft pulley.
3. Remove the plate.
4. Install in the reverse order of removal.

NOTE: Adjust the drive belt when installing the drive belt.
