Receiver Dryer: Service and Repair

1. Discharge the refrigerant from the system.
2. Disconnect the negative battery cable.
3. Remove the condenser.

CAUTION: If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

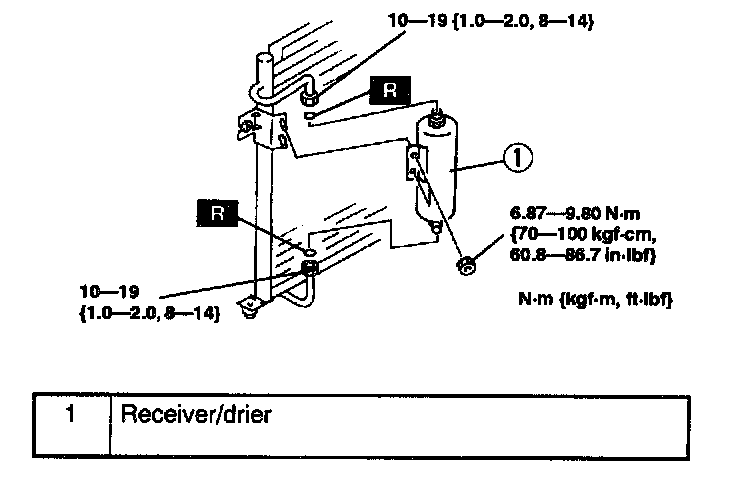

4. Remove in the order indicated in the table. Do not allow compressor oil to spill.
5. Install in the reverse order of removal.
6. Perform the refrigerant system performance test.

Receiver/Drier Installation Note
When installing a new receiver/drier, add DENSO OIL9 compressor oil into the refrigeration cycle.

Supplemental amount
10 ml {10 cc, 0.3 fl oz}
