Removal/Installation

1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Remove the dashboard.

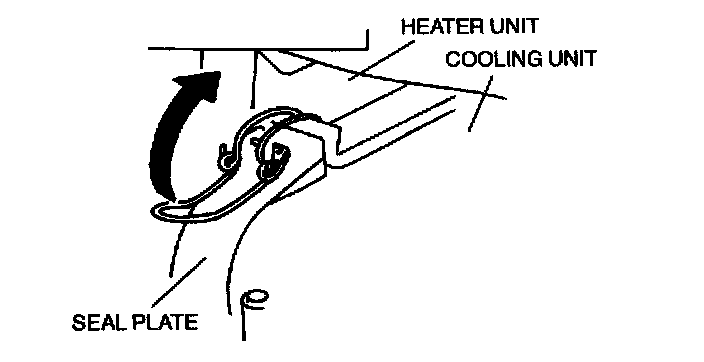

4. Remove the seal plate.

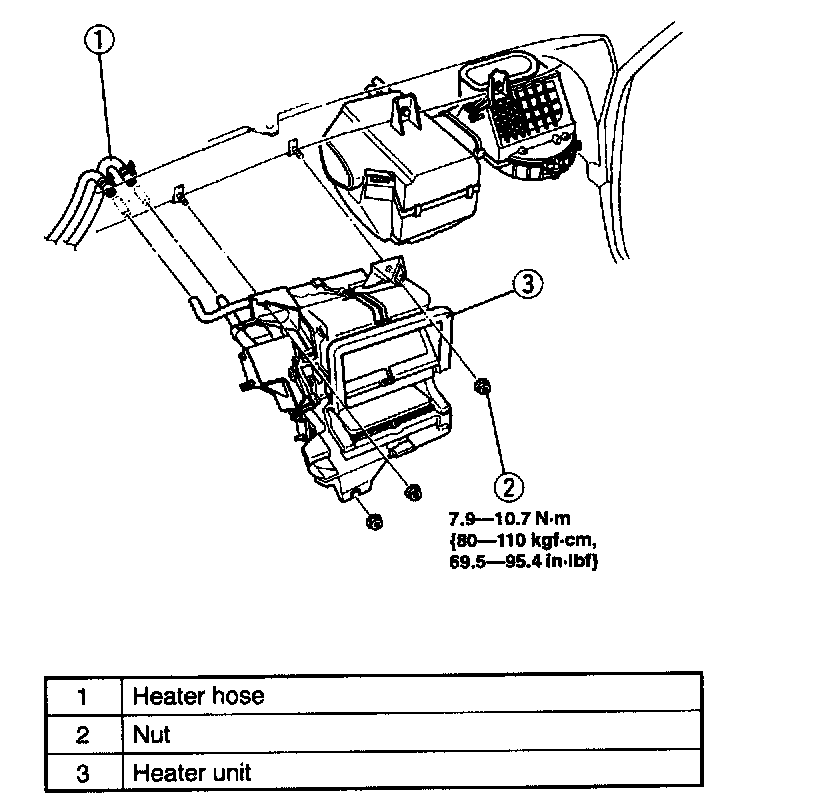

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
7. Refill the engine coolant.
