Compressor Clutch: Adjustments

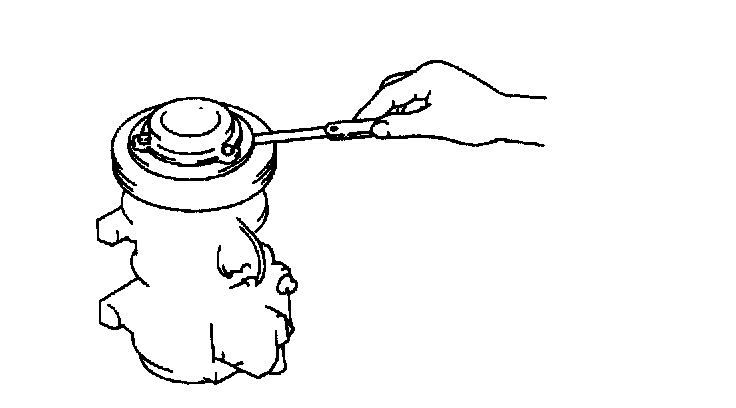

Adjust the clearance using shims if necessary. Adjusting shims are available in the following thicknesses.

Adjusting shim size
0.1 mm {0.004 in}
0.3 mm {0.012 in}
0.5 mm {0.020 in}

Standard clearance
0.35 - 0.65 mm {0.014 - 0.025 in}
