MX-5 Miata L4-1.8L DOHC
>>
Repair and Diagnosis
>>
Body and Frame
>>
Service and Repair
Body and Frame: Service and Repair
1.
Disconnect the negative battery cable.
2.
Remove the front
bumper
.
3.

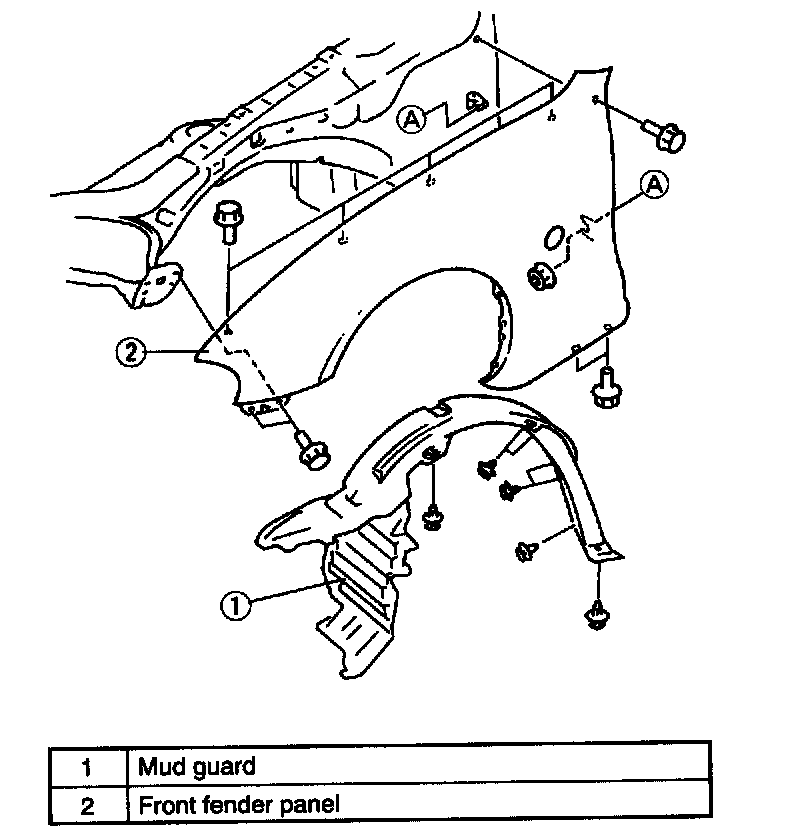

Remove in the order indicated in the table.
4.
Install in the reverse order of removal.
