Cruise Control
>>
Locations
>>
Component Locations
Component Locations

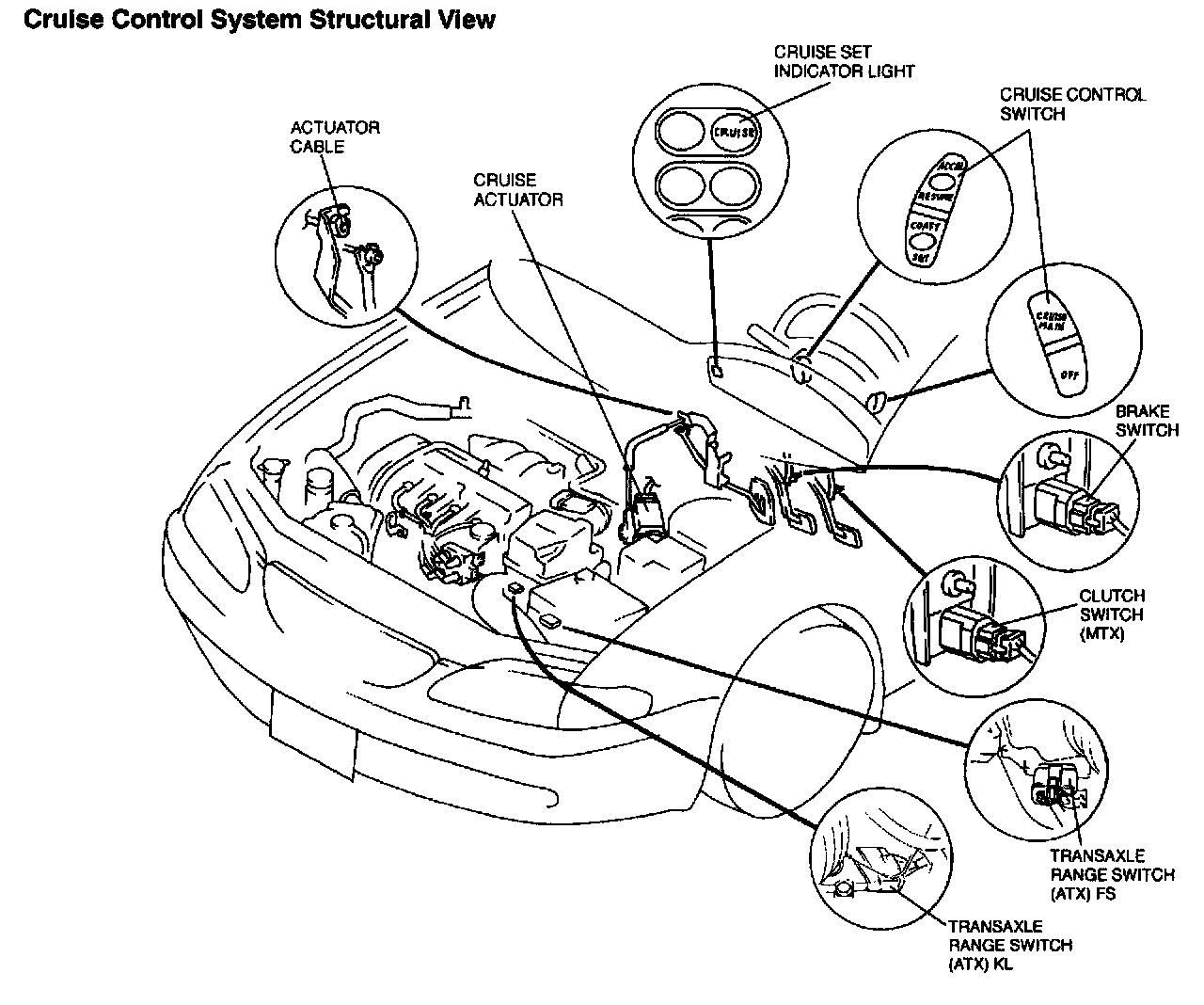

Cruise Control System Structural View:
