Washer Fluid Level Indicator: Testing and Inspection

WASHER FLUID-LEVEL SENSOR INSPECTION
1. Partially peel off the right side mud guard.
2. Remove the windshield washer tank.

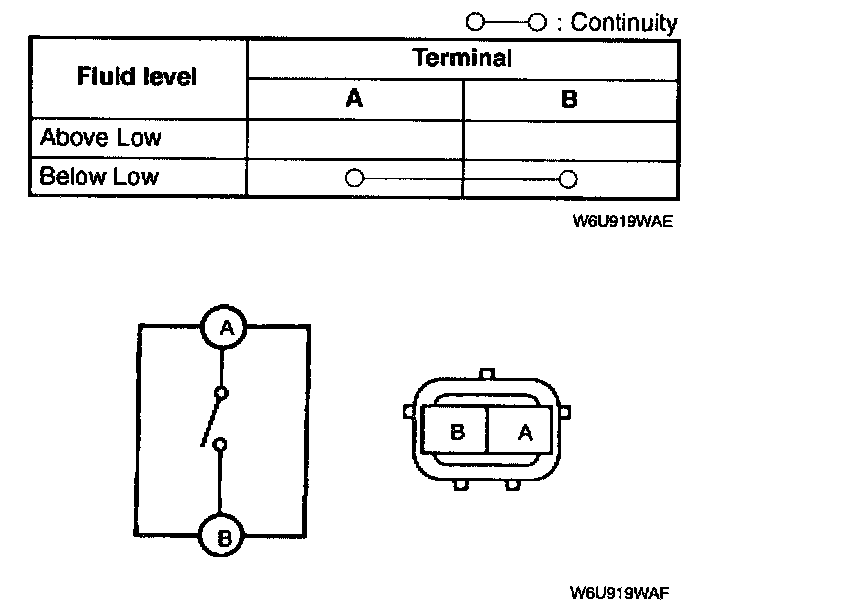

3. Inspect for continuity between the washer fluid-level sensor terminals by using an ohmmeter.
- If not as specified, replace the washer fluid-level sensor.
