Power Window Regulator
Power Window Regulator
1.
Remove the rear door glass. (See REAR DOOR GLASS AND GUIDE REMOVAL/INSTALLATION.)
2.
Disconnect the negative battery cable.
3.

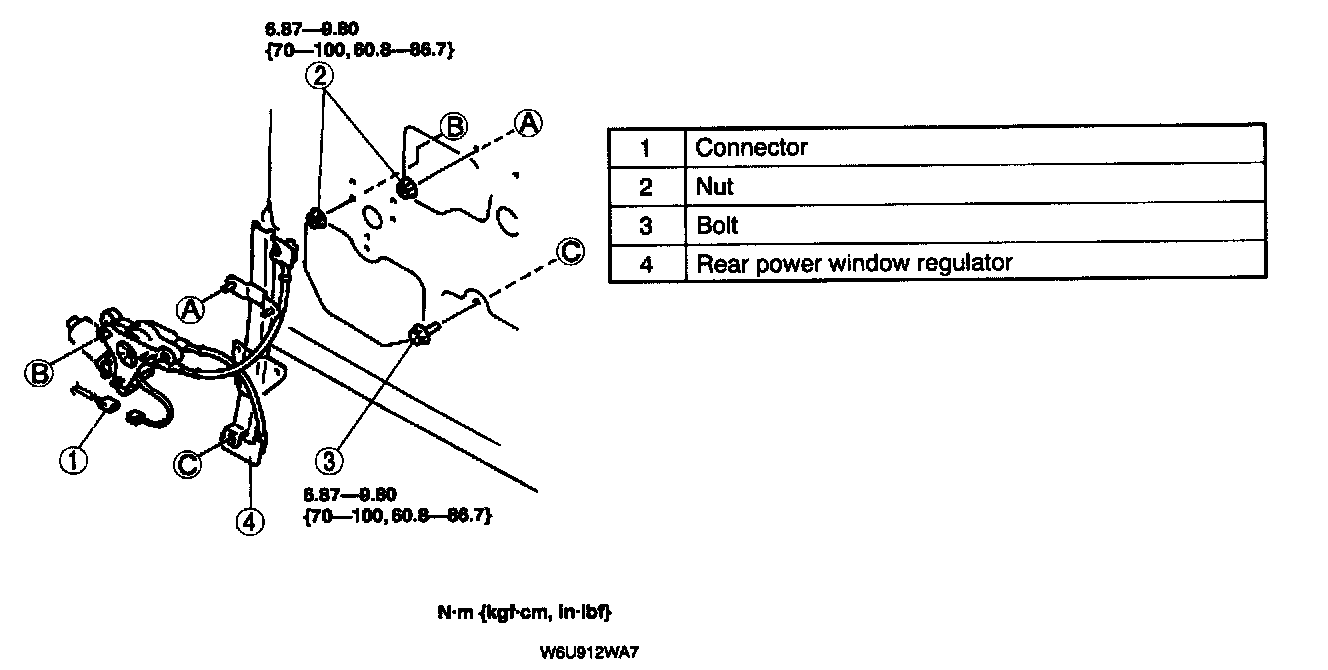

Remove in the order indicated in the table.
4.
Install in the reverse order of removal.
