EGR Boost Control Solenoid: Description and Operation

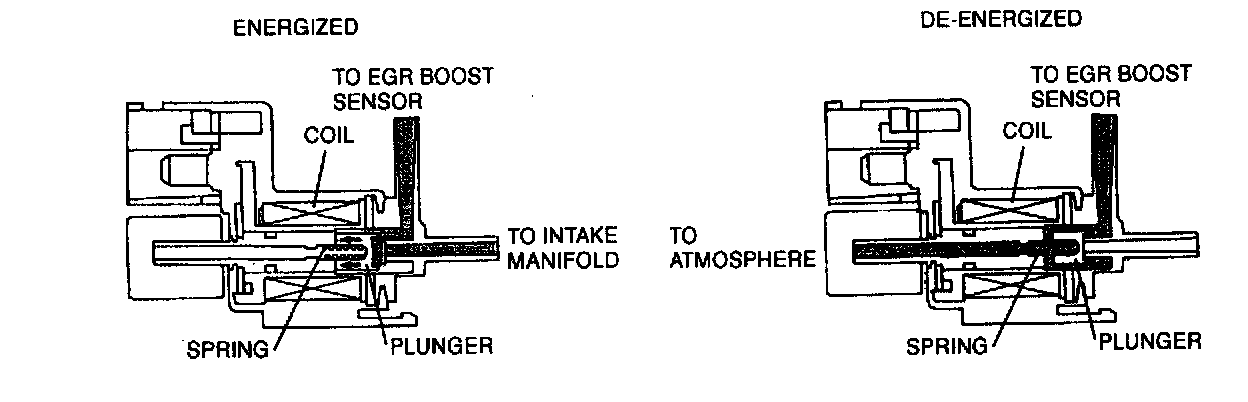

- The EGR boost solenoid valve switches the application of barometric pressure or intake manifold vacuum to the EGR boost sensor.
- Intake manifold vacuum is applied to the EGR boost sensor when the solenoid is energized.
