Expansion Block/Orifice Tube: Service and Repair

1. Drain the refrigerant from the system.
2. Remove cooler pipe No.5. (See REFRIGERANT LINES REMOVAL/INSTALLATION.)

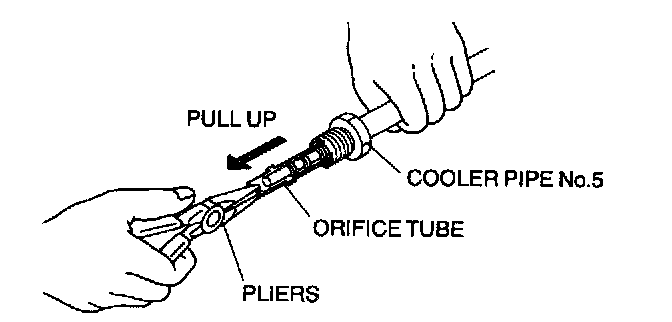

3. Remove the orifice tube carefully to prevent it from breaking.
4. Install in the reverse order of removal.
5. Recharge with refrigerant.
6. Perform the refrigerant system performance test.
