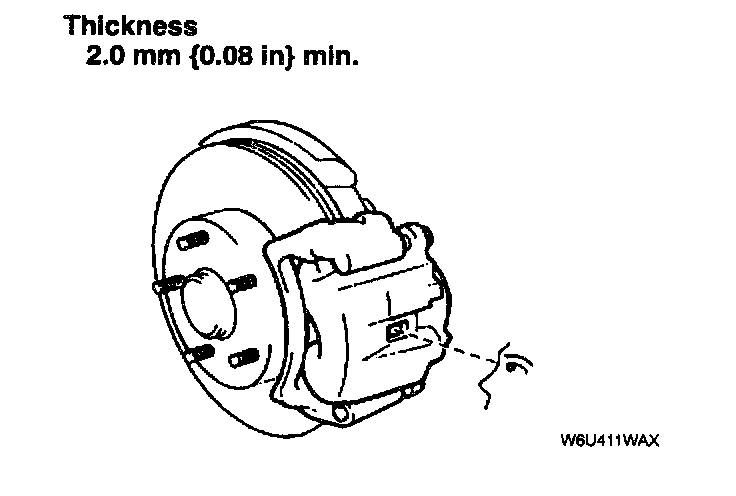

DISC PAD THICKNESS INSPECTION
1. Jack up the front of the vehicle and support it with safety stands.
2. Remove the wheels.





3. Verify the remaining thickness of the pads. Replace the pads as a set: right and left wheels, if either one is at or less than the minimum thickness.
Thickness
2.0 mm (0.08 inch) min.

DISC PLATE THICKNESS INSPECTION
^ Measure the thickness of the disc plate.
^ If the thickness is not within the specification, replace the disc plate.

Caution When it is necessary to machine the disc plate, and the disc plate is removed from the vehicle then machined, excessive runout may result. Machine the disc plate which is installed on the vehicle.

Minimum
22 mm (0.87 inch)
Minimum thickness after machining by using a brake lathe on-vehicle
22.8 mm (0.90 inch)

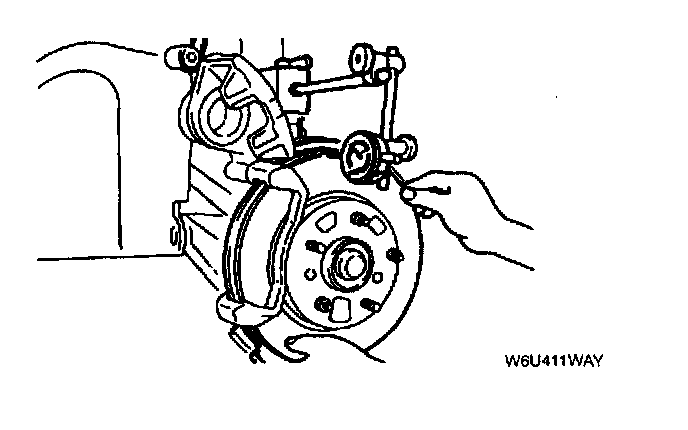

DISC PLATE RUNOUT INSPECTION
1. Verify that there is no looseness in wheel bearing.





2. Measure the runout at the outer edge of the contact surface of the disc pad.
^ If the runout is not within the specification, repair or replace the disc plate.
Runout
0.05 mm (0.002 inch) max.
