Home >> Mazda >> 1997 >> 626 ES V6-2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Index

Symptom Index

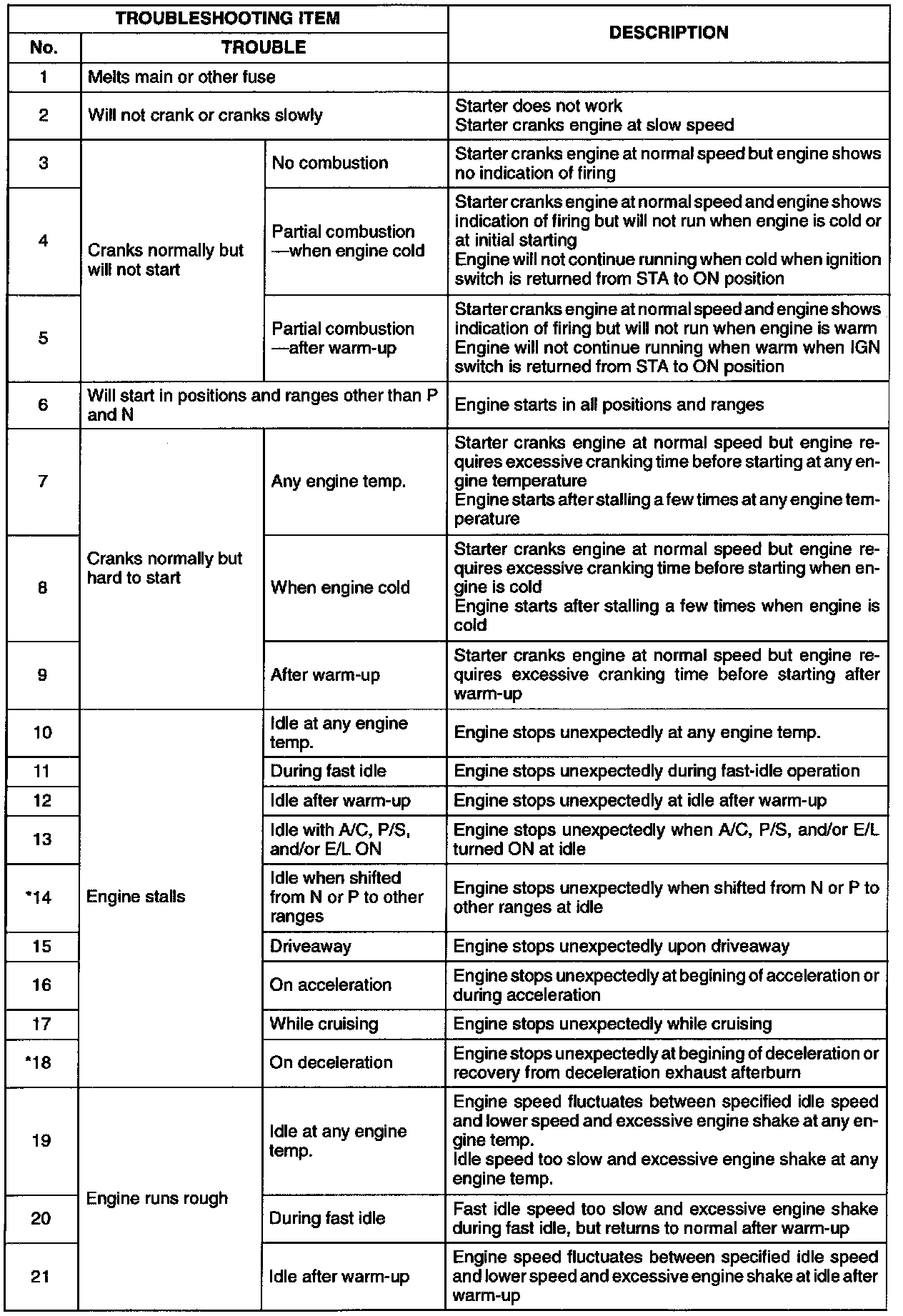

Trouble Shooting Chart Index (1 Of 3):

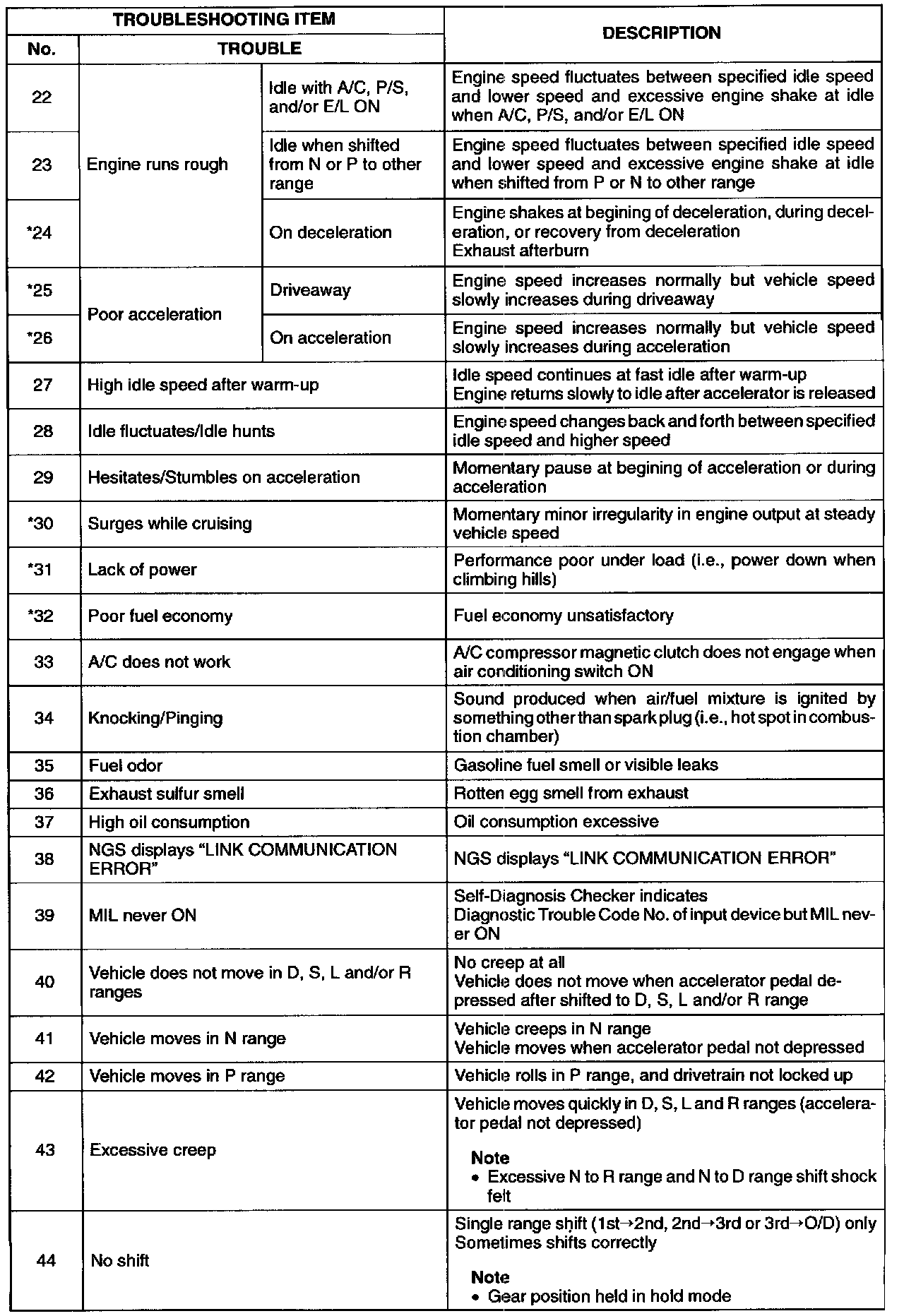

Trouble Shooting Chart Index (2 Of 3):

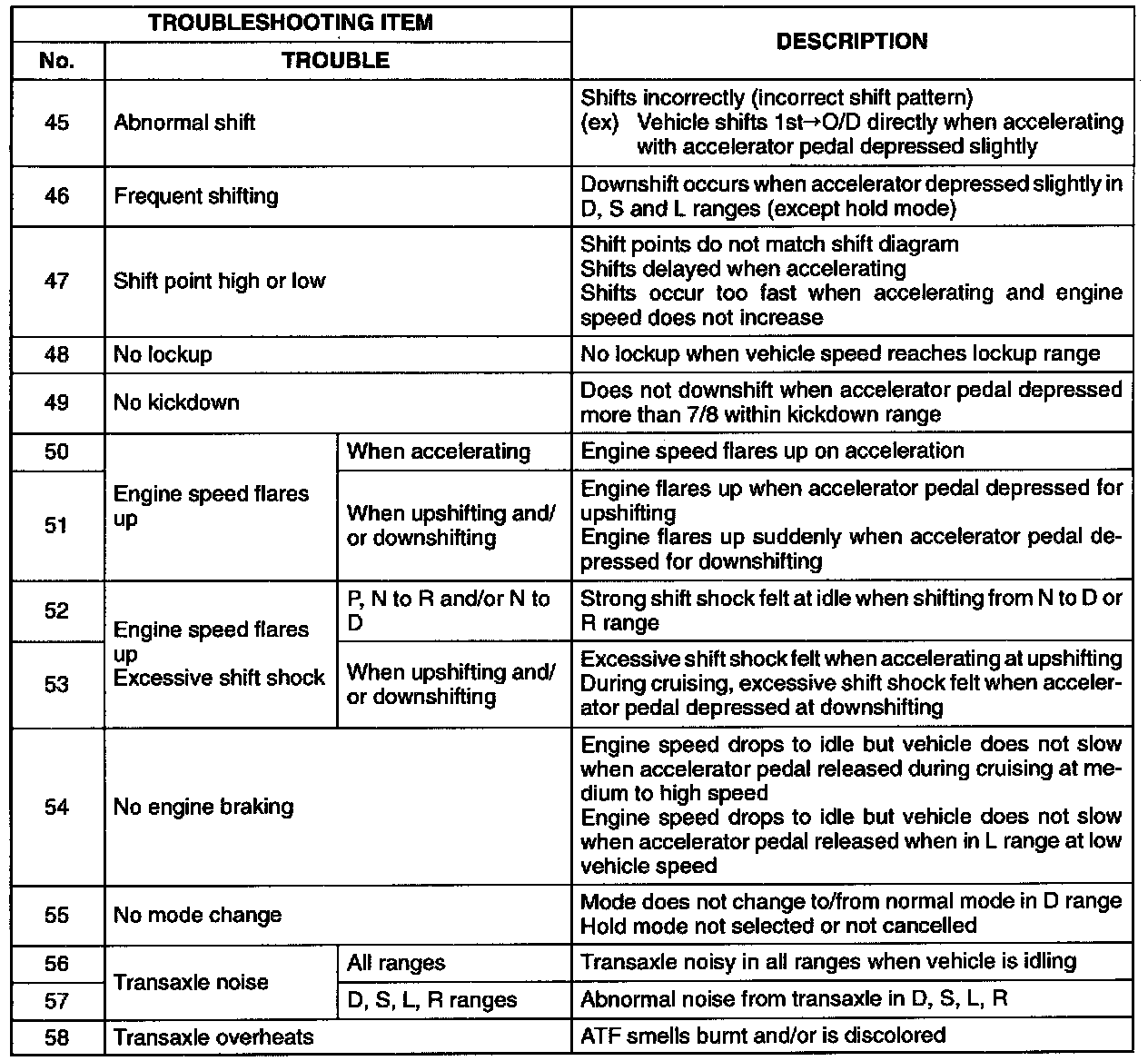

Trouble Shooting Chart Index (3 Of 3):




DIAGNOSTIC INDEX
