Interior Lighting Module

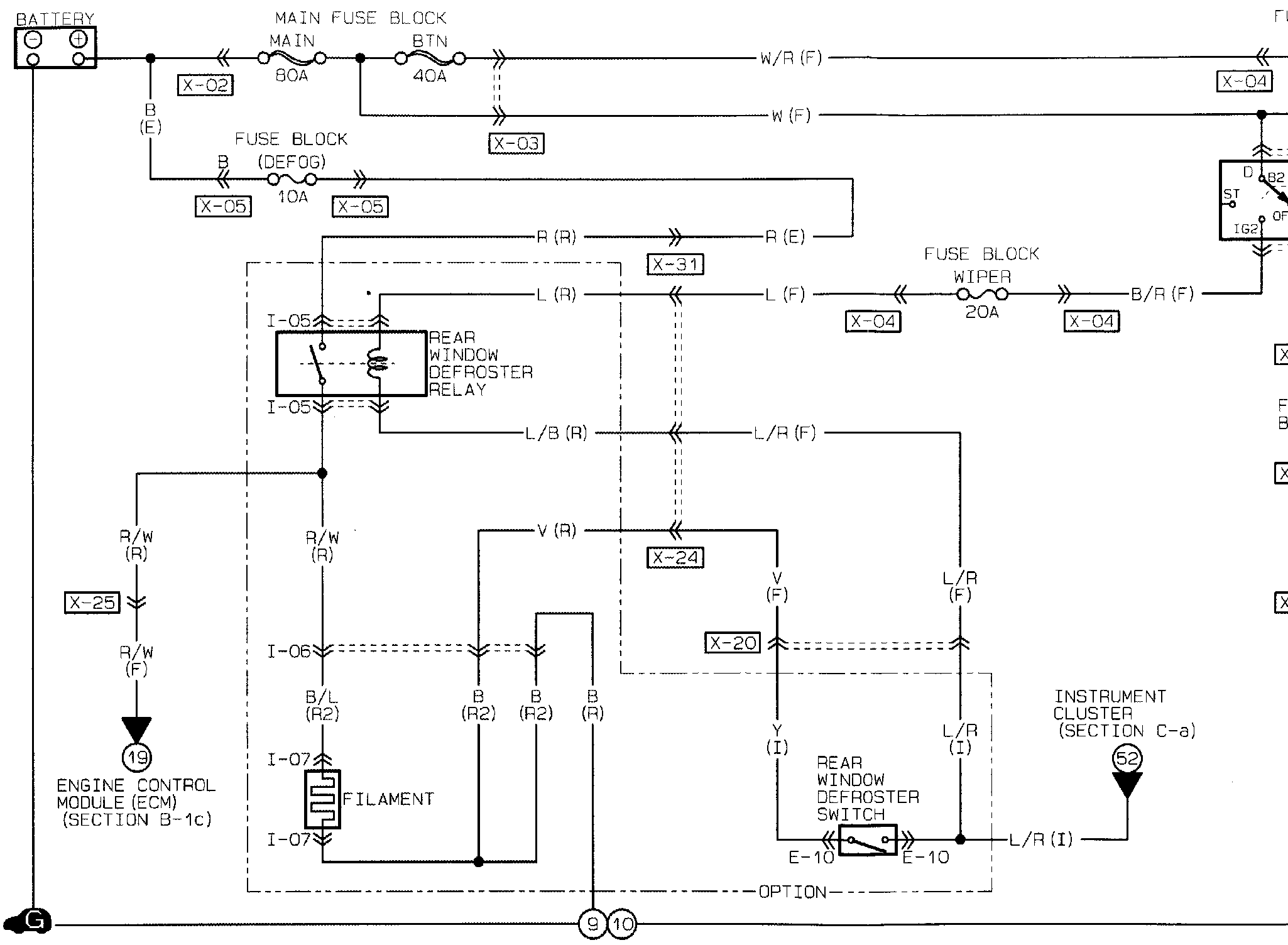

�[�Cigarette Light, Interior Light, Trunk Compartment Light, Rear Window Defroster (Option):
